Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IRS93-SCMM
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Fiber Modem Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Fiber Connector: |
SC Standard, ST/FC/LC Optional |
RS-232: |
TXD, RXD, GND - Bi-directional |
RS-485: |
D+, D-, GND - Bi-directional |
Power Supply: |
DC12~48V |
Power Rate: |
<5W |
Operation Temperature: |
-25°C To +75°C |
Dimensions: |
95x70x29mm |
Weight: |
0.25Kg |
Fiber Connector: |
SC Standard, ST/FC/LC Optional |
RS-232: |
TXD, RXD, GND - Bi-directional |
RS-485: |
D+, D-, GND - Bi-directional |
Power Supply: |
DC12~48V |
Power Rate: |
<5W |
Operation Temperature: |
-25°C To +75°C |
Dimensions: |
95x70x29mm |
Weight: |
0.25Kg |

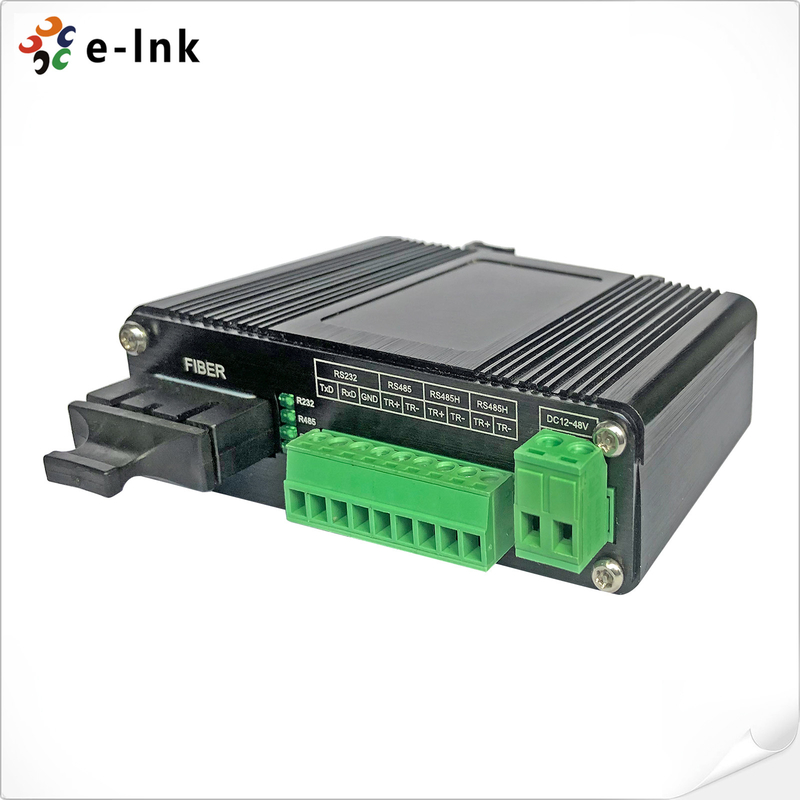

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem
Fiber Media Converter Advantages
► Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF
► EIA /TIA standard RS232/485/422, 0~2Mbps rate
► Serial data is fully transparent, baud rate is self-adaptive, no setting is required
► The high speed serial data can used for DMX512 communication in Stage Lighting Control
► Support DIN-Rail & Wall-mount installation.
► Built-in surge and static protection
► Diagnostic and unit indicator LEDs
Serial To Fiber Optic Modem Technical Indexes
| Model | LNK-IRS93 Series |
| Fiber Connector | SC standard, ST/FC/LC optional |
| Fiber Distance | 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km |
| Serial Interface | Industrial Terminal |
| Signal Ports |
1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422 |
| Standard | EIA /TIA RS232/485/422 |
| Serial Distance | RS232: 15 meters, RS485/422: 1000 meters |
| Rate | Max 2Mbps |
| RS-232 | TXD, RXD, GND - Bi-directional |
| RS-485 | D+, D-, GND - Bi-directional |
| Power Supply | DC12~48V |
| Power rate | <5W |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Operation Temperature | -25°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions | 95(L)*70(W)*29(H) mm |
| Weight | 0.25kg/pcs |
Serial to Fiber Modem Overview
LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber. The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security and confidentiality of data communication, and can be widely used in various industrial control, process control, Stage Lighting Control and traffic control occasions.
Industrial Din Rail Fiber Optic Modem Ordering Information
|
Model |
Description |
|
LNK-IRS93-SCMM |
Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m |
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
