Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-3G-1V4H
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: SDI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
3G-SDI Fiber Extender |
Power Supply: |
DC 5V |
Input Signal: |
SD/HD/3G-SDI |
Output Signal: |
HDMI |
Video Resolution: |
Up To 1920x1200P 60Hz |
Transmission Distance: |
Up To 20KM |
Keyword: |
3G-SDI Fiber Extender |
Power Supply: |
DC 5V |
Input Signal: |
SD/HD/3G-SDI |
Output Signal: |
HDMI |
Video Resolution: |
Up To 1920x1200P 60Hz |
Transmission Distance: |
Up To 20KM |

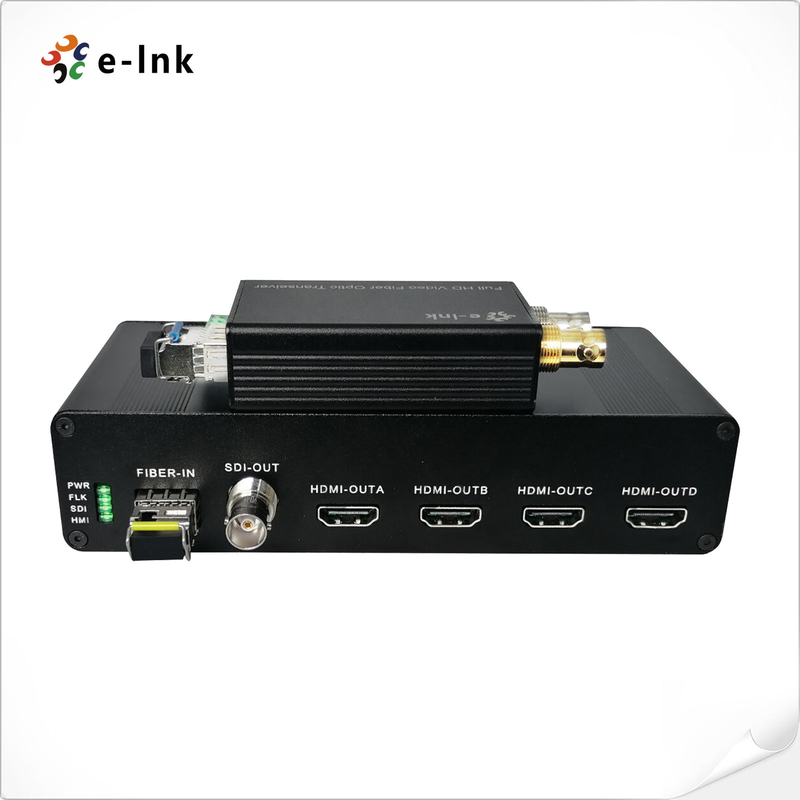

SDI Fiber Converter 1Ch 3G-SDI Fiber Extender With 4Ch HDMI Output
3G-SDI Fiber Extender Advantages
► Directly compatible with 3G-SDI camera systems
► Long transmission capability at least 10 km (6.2miles) , up to 80 km
►Terminal block power input; Hot swap and hot plug
►Industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments
3G SDI Fiber Converter Technical Indexes
| Fiber Optical interface | |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video Bits Rate | Max 3.2Gb/s |
| Video SDI standard | 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) | |
| SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Video - HDMI | |
| Resolution | Up to 1920*1200@60Hz |
| HDMI Cable Range | <5Meter |
| Power adaptor | DC 5V |
| Power consumption | <5W |
| LED Indicator | |
| SDI | SDI Video |
| HMI | HDMI Video |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
SDI To Fiber Extender Overview
LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.
SDI to Fiber Converter Ordering Information
|
Model |
Description |
|
LNK-3G-1V4H |
3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs |
