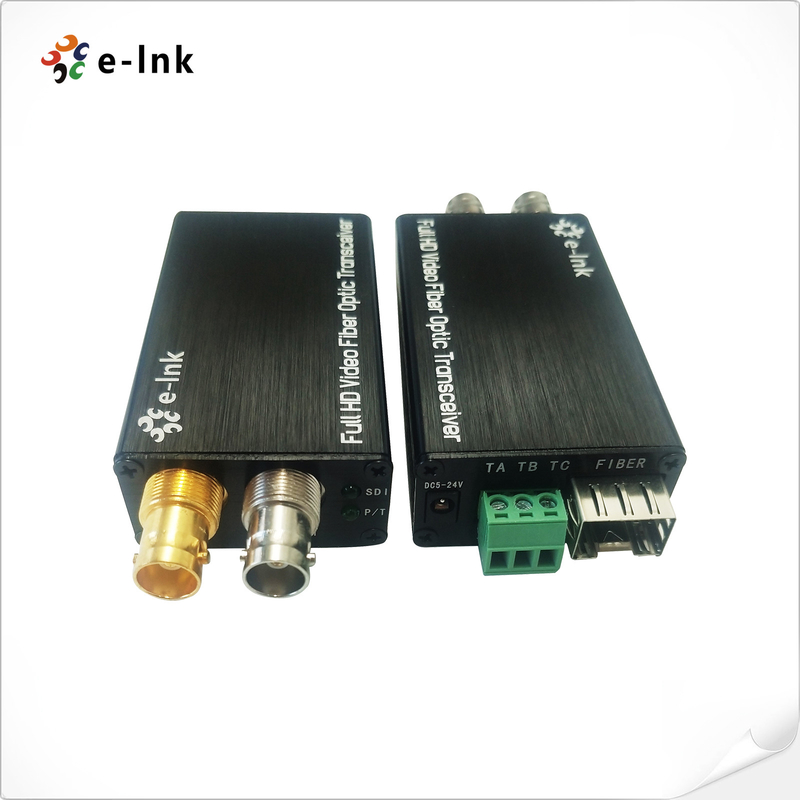

3G SFP SDI Mini Converter Optical Fiber For 1080P Video Broadcasting

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-M3G-1V Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

SDI mini converter optical fiber

,

3G mini converter optical fiber

,

3G sdi to optical fiber converter

Fiber Port:
Simplex LC
Distance:
550m-20Km
Fiber Wavelength:
1310nm/1550nm
Power Supply:
DC 5~25V
SDI Format Support:
1080P 23.98/24/30/50/60
Size:
80 X 40 X 20 Mm
Fiber Port:
Simplex LC
Distance:
550m-20Km
Fiber Wavelength:
1310nm/1550nm
Power Supply:
DC 5~25V
SDI Format Support:
1080P 23.98/24/30/50/60
Size:
80 X 40 X 20 Mm
Description
3G SFP SDI Mini Converter Optical Fiber For 1080P Video Broadcasting

Mini Size 3G SDI Fiber Converter for 1080P Video Broadcasting with SFP Modules

SDI Fiber Converter Advantages

  • Each channel includes 8-channel audio embedded;
  • Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);
  • Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
  • Directly compatible with HD-SDI camera systems
  • Long transmission capability up to 80 km
  • Hot swap and hot plug.

Overview

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally or Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output.

Order Information

Model Description
LNK-M3G-1V1T-MM Mini-type 3G-SDI to Fiber Converter with Tally and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-MM Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1T-20 Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-20 Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1T-40 Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
LNK-M3G-1V1D-40 Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

3G SFP SDI Mini Converter Optical Fiber For 1080P Video Broadcasting 0

Specification

Fiber Optical interface
Fiber interface Simplex LC
Transmission distance 550m-20Km
Wavelength 1310nm/1550nm
Video
Video interface BNC
Video input/output impedance 75Ω
Video input/output voltage Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate Max 3.2Gb/s
Differential gain (10%~90% APL) <1%
SDI format support 625/25 PAL
525/29.97 NTSC, 525/23.98 NTSC
720p50, 720p59.94
1080i 23/24/30/50/59.94
1080P 23.98/24/30/50/60
Video SDI standard 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Data
Physical interface Industrial standard screw terminal
Data type Tally or Reverse RS485
Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER <10ˉ9
Electrical
Power adaptor DC 5~25V
Power consumption <5W
LED Indicator
SDI SDI video
P/T Power Supply
Mechanical
Dimensions (LxWxH) 80 x 40 x 20 mm
Weight 1KG/pair
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20℃~+70℃
Storage Temperature -40℃~+80℃
Working Humidity 0~95%
MTBF ≥100000 hours
