HD SDI Fiber Converter Extender RS232 To RS485 With IR Remote Control

Name: HD SDI Fiber Converter Extender RS232 To RS485 With IR Remote Control
Brand: E-link China Technology Co.,LTD
SKU: LNK-SDIR-20
Price: 197.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-SDIR-20

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: $25-369

Packaging Details: SDI Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, , Paypal

Supply Ability: 1000 pairs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      rs232 SDI Fiber Converter, rs485 SDI Fiber Converter, rs232 to rs485 converter


Keyword:	HD SDI To Fiber Converter	SDI Signal Format:	SD-SDI, HD-SDI
SDI Rate:	270Mb/s, 1.485Gb/s	IR Remote Control:	20~60KHz
Power Supply:	DC5V/2A	Weight:	0.6Kg

Keyword:	HD SDI To Fiber Converter
SDI Signal Format:	SD-SDI, HD-SDI
SDI Rate:	270Mb/s, 1.485Gb/s
IR Remote Control:	20~60KHz
Power Supply:	DC5V/2A
Weight:	0.6Kg

Description

HD SDI Fiber Converter Extender RS232 To RS485 With IR Remote Control

SDI Fiber Converter HD-SDI Over Fiber Extender With IR Remote Control
HD-SDI Fiber Extender Advantages

► Extend HD-SDI signal over SC optical fiber cable
► Transmit 1080P signal up to 20km
► Inherently immune to electromagnetic interference
► Low signal loss, wide frequency band and strong anti-interference

Technical Indexes

Support resolution	SD-SDI signal: 480i@60Hz, 576i@50Hz
Support resolution	HD-SDI signal: 720P@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30Hz
Transmission Distance	Extend 1080P resolution up to 20KM over SMF cables
IR remote control	Support 20~60KHz IR remote control
Operating Temperature	0°C to 60°C (32°F to 140°F)
MTBF	> 200,000 hrs
Power supply	DC5V/2A
Power Consumption:	TX<10W
Power Consumption:	RX<10W
Dimension (LxWxH)	168x95x22mm
Color	Black
Weight:	0.6Kg
Casing:	Metal Case

Overview

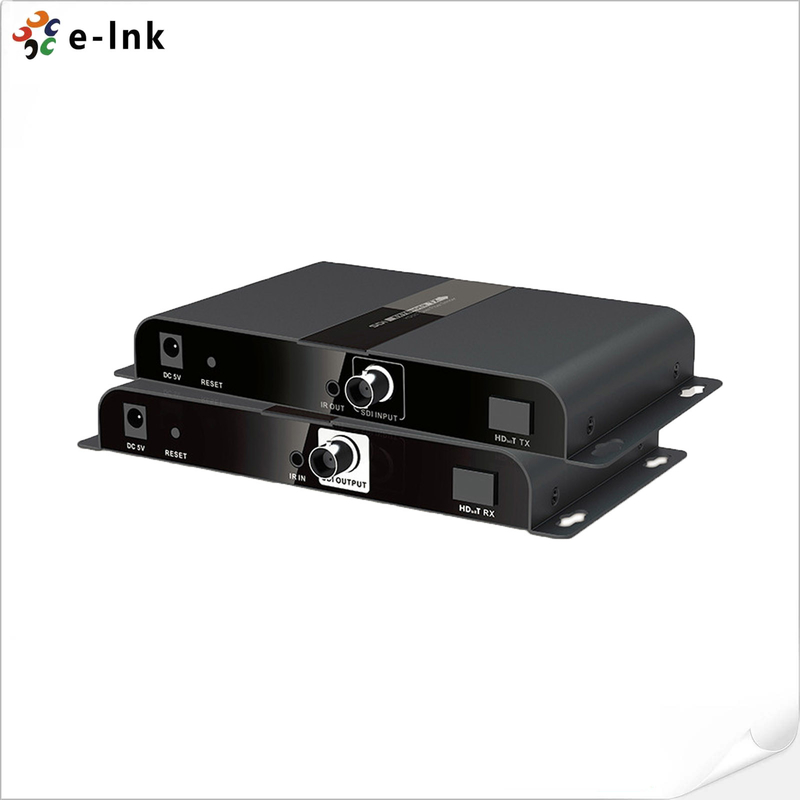

LNK-SDIR Series SDI Fiber extender transmits 1080P SDI signal over a single optical fiber cable up to 20 km. It supports IR pass-back function and SD-SDI, HD-SDI signal input. LNK-SDIR Series HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal.

HD SDI Fiber Converter Extender RS232 To RS485 With IR Remote Control

Ordering information

Model	Description
LNK-SDIR-20	HD-SDI over Fiber Extender with IR Remote Control, SMF, SC, 20KM
Mounting Options	Default Wall Mount Bracket is included.
Power Options	DC5V/2A Power Adapter
Power Options	Power Supply is included
