Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: MDR-20-24
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD20/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Input Voltage: |
100-240V AC,50/60Hz, 1.45A |
Power Output: |
24 Watts,24V, 1A |
Type: |
Hardened |
Temperature: |
-20~70 |
Dimensions: |
22.5 X 90 X 100 Mm |
Weight: |
0.19kg |
Mounting: |
DIN-Rail |
Input Voltage: |
100-240V AC,50/60Hz, 1.45A |
Power Output: |
24 Watts,24V, 1A |
Type: |
Hardened |
Temperature: |
-20~70 |
Dimensions: |
22.5 X 90 X 100 Mm |
Weight: |
0.19kg |
Mounting: |
DIN-Rail |

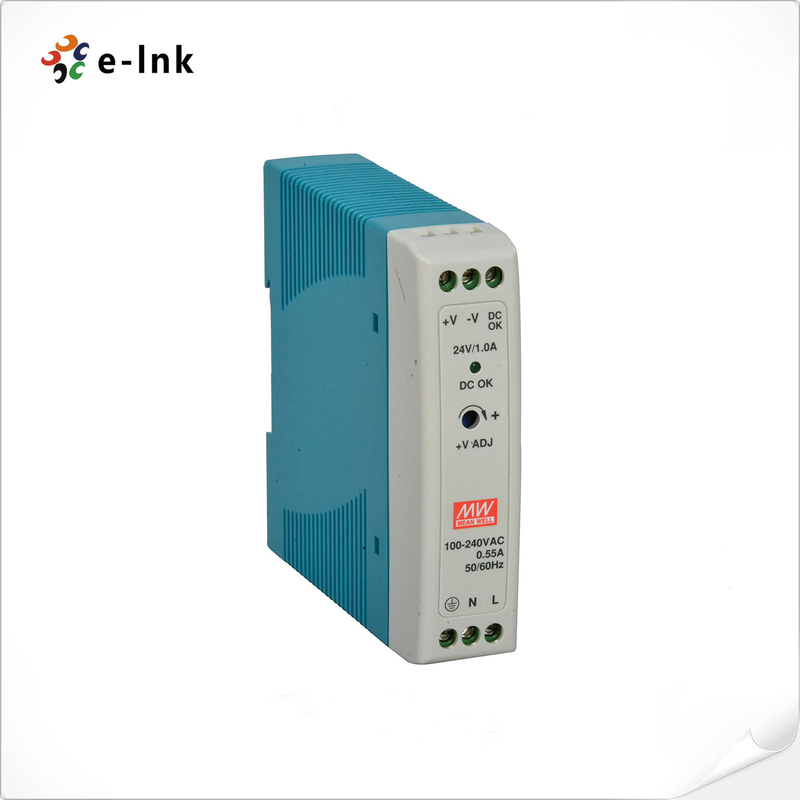

Accessories MEAN WELL 24W/24V 1A Industrial DINRAIL Power Supply
Accessories MEAN WELL Advantages:
· Universal AC input/Full range
· Protections: Short circuit / Overload / Over voltage
· Cooling by free air convection
· Can be installed on DIN rail TS-35/7.5 or 15
· Built in DC OK active signal
· LED indicator for power on
· 100% full load burn-in test
· No load power consumption<0.75W
· 3 years warranty
Technical Indexes
| MEAN WELL/MDR-20-24 | |
| Configuration | Enclosed |
| Dimensions (W x H x D) | 22.5 x 90 x 100 mm |
| Weight (kg) | 0.19kg |
| Mounting Type | DIN-Rail Mount |
| Input Voltage | 100-240V AC,50/60Hz, 1.45A |
| Power Output | 24 Watts,24V, 1A |
| Primary Type | AC-DC |
| Type | Industrial |
| Temperature | Operating:-20~70 degrees C Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| Special Features | *3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
Overview
MEAN WELL 24W/24V 1A Industrial DINRAIL Power Supply
Ordering Information
| Model | Description |
| MDR-20-24 | MEAN WELL 24W/24V 1A Industrial DINRAIL Power Supply |
