Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC202GP90-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/Month
Keyword: |
Industrial PoE Switch |
PoE Standard: |
802.3bt 90W |
Input Power: |
12~48VDC With 4-pin Terminal Block |
Connector: |
2-port 10/100/1000BASE-T RJ45 |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |
Keyword: |
Industrial PoE Switch |
PoE Standard: |
802.3bt 90W |
Input Power: |
12~48VDC With 4-pin Terminal Block |
Connector: |
2-port 10/100/1000BASE-T RJ45 |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Mounting Options: |
DIN-Rail / Wall-mount |

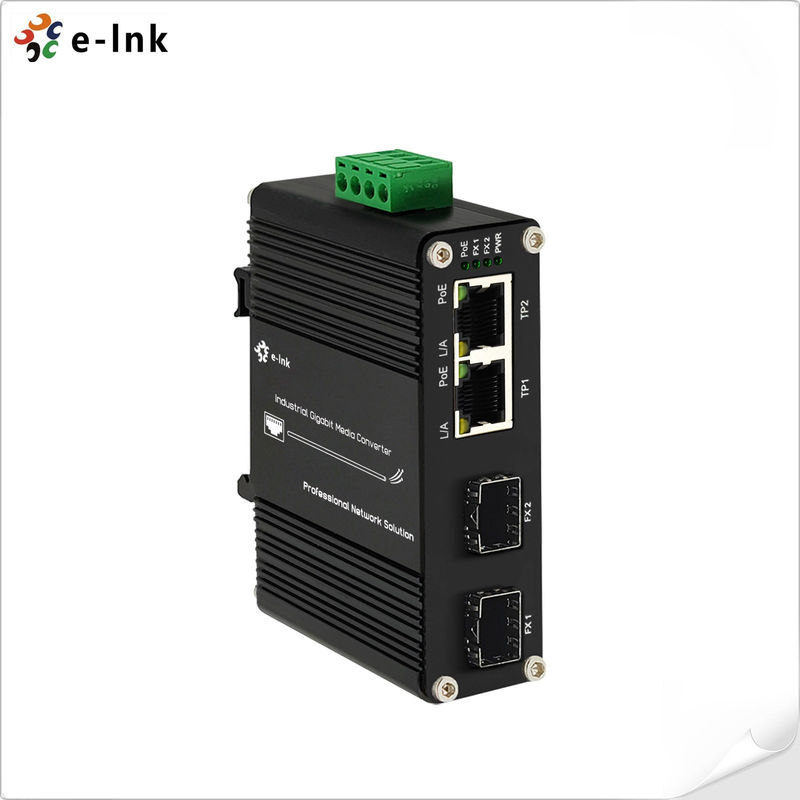

Mini Industrial 2-Port 1000Mbps 802.3bt 90W PoE Switch With 2-Port SFP Fiber
2-Port PoE Switch Features
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af/at PoE+ (30W) or IEEE802.3bt PoE++ (90W)
► Supports Link Fault Pass Through
► Supports DIN-Rail & Wall-mount installation
Unmanaged Fiber Ehternet Switch 802.3bt Technical Indexes
| Standard: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| IEEE802.3bt Power over Ethernet | |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 189W Max. |
| PoE: | PD Plug Status |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
Din Rail Industrial Gigabit PoE Switch Overview
LNK-IMC202GP90-SFP Series is a DIN rail type 802.3bt 90W PoE Switch that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +80°C. LNK-IMC202GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
2-Port Copper to 2-Port Fiber Ethernet Switch Ordering Information
| Model | Description |
| LNK-IMC202GP90-SFP | Mini Industrial 2-Port 10/100/1000T 802.3bt 90W PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
