Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: NDR-480-48
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD90/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Input Voltage: |
100-240V AC,50/60Hz, 4.8A |
Power Output: |
480 Watts,48V, 10A |
Temperature: |
Operating:-20~70 Degrees C |
Dimensions (W X H X D): |
85.5 X 125.2 X 128.5 Mm |
Weight (kg): |
1.5kg |
Warranty: |
3 Year |
Input Voltage: |
100-240V AC,50/60Hz, 4.8A |
Power Output: |
480 Watts,48V, 10A |
Temperature: |
Operating:-20~70 Degrees C |
Dimensions (W X H X D): |
85.5 X 125.2 X 128.5 Mm |
Weight (kg): |
1.5kg |
Warranty: |
3 Year |

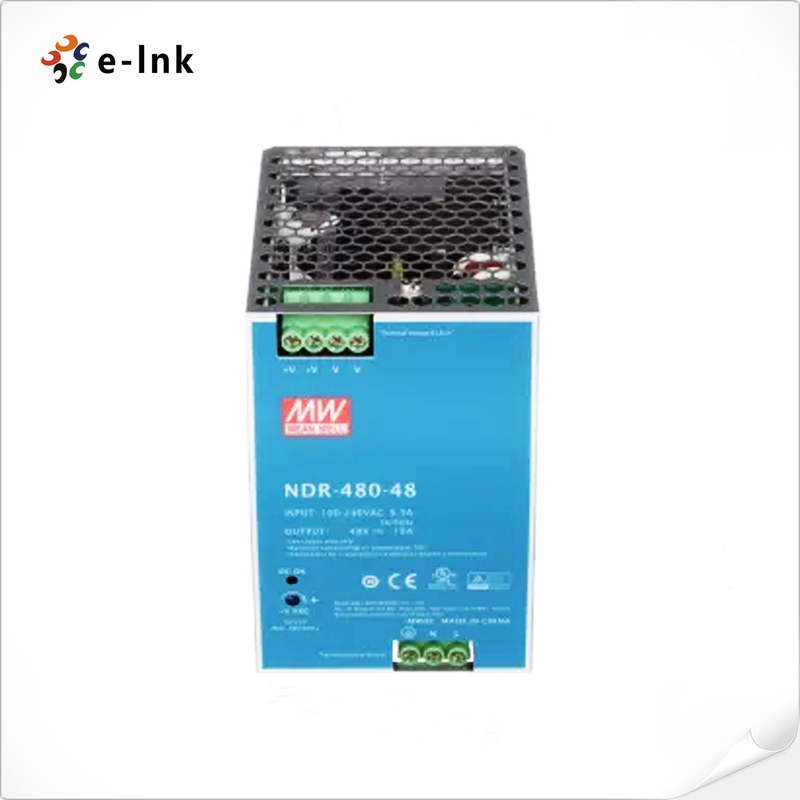

Accessories MEAN WELL 480W/48V 10A Industrial DIN-RAIL Power Supply
Accessories MEAN WELL Advantages:
· Universal AC input full operation
· Built-in active PFC function
· Protection features: short circuit, overload, over voltage and over temperature
· Cooling by free air convection
· DIN rail TS-35/7.5 or 15 installation
· UL 508 (industrial control equipment) approved
· EN61000-6-2 (EN50082-2) industrial immunity level
· 100% full load burn-in test
· 3 years warranty
Technical Indexes
| MEAN WELL/NDR-480-48 | |
| Configuration | Enclosed |
| Dimensions (W x H x D) | 85.5x 125.2 x 128.5 mm |
| Weight (kg) | 1.5kg |
| Mounting Type | DIN-Rail Mount |
| Input Voltage | 100-240V AC,50/60Hz, 4.8A |
| Power Output | 480Watts,48V, 10A |
| Primary Type | AC-DC |
| Type | Industrial |
| Temperature | Operating:-20~70 degrees C Storage:-40~85 degrees C |
| Humidity | Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing) |
| Installation | DIN rail TS-35/7.5 or 15 |
| Safety & Function | Ul508, TUV EN60950-1 approved (meeting EN60204-1) |
| Special Features | *3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection |
Overview
MEAN WELL 480W/48V 10A Industrial DIN-RAIL Power Supply
Ordering Information
| Model | Description |
| NDR-480-48 | MEAN WELL 480W/48V 10A Industrial DIN-RAIL Power Supply |
