Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC005P
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial PoE Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Keyword: |
Industrial PoE Switch |
PoE: |
Max 30W Per Port |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Operating Temperature: |
-40°C To 80°C |
Power Consumption: |
<125W (Non-PoE<6W) |
Casing: |
Aluminum Case |
Keyword: |
Industrial PoE Switch |
PoE: |
Max 30W Per Port |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Operating Temperature: |
-40°C To 80°C |
Power Consumption: |
<125W (Non-PoE<6W) |
Casing: |
Aluminum Case |

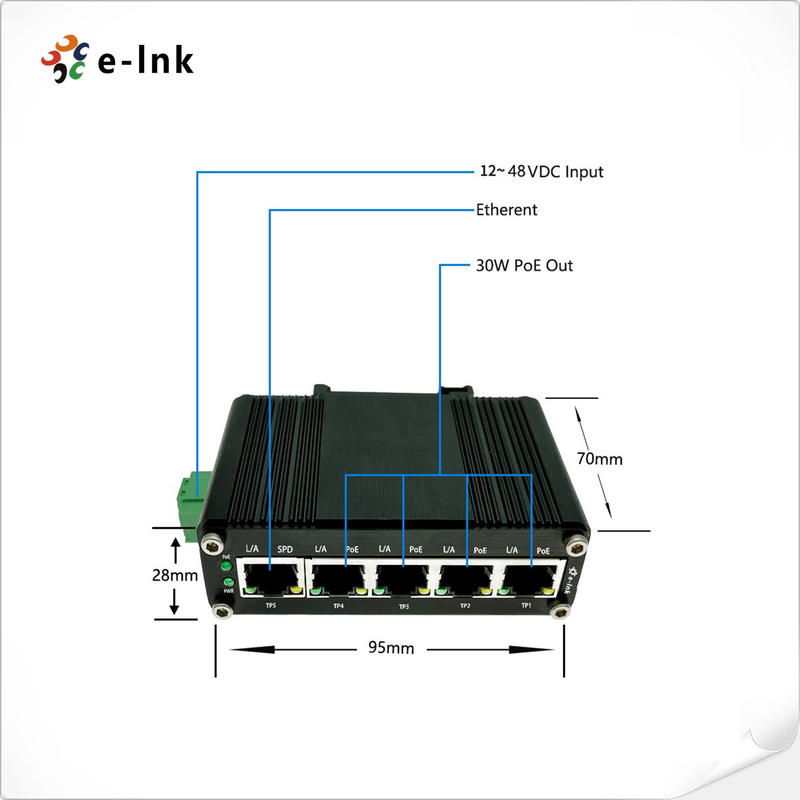

Industrial PoE Switch 5 Port Industrial Ethernet Switch Din Rail Mount
Industrial PoE Switch Adavantages
► 5 x 10/100 BASE-TX ports
► 4 10/100BASE-TX Fast Ethernet RJ45 copper ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► 12~48VDC wide range power input
► Supports 802.3x Flow control
► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Techinical Indexes
| Connector: |
5 10/100BASET RJ45 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| PoE | Max 30W per port |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
Overview
LNK-IMC005P Series is a Mini Industrial 4-port 10/100TX 802.3at PoE+1-Port 100TX Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC005P | Mini Industrial 4-port 10/100TX 802.3at PoE+1-Port 100TX Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
