Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-IP1200AP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD75/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Power: |
DC12V~80V |
Ethernet Interface: |
RJ45 |
Coaxial Connector: |
BNC |
Without PoE: |
1200m |
With PoE: |
300m |
Weight: |
0.15KG |
Dimension (W×H×D): |
78mm×70mm×21mm |
Material: |
Metal |
Power: |
DC12V~80V |
Ethernet Interface: |
RJ45 |
Coaxial Connector: |
BNC |
Without PoE: |
1200m |
With PoE: |
300m |
Weight: |
0.15KG |
Dimension (W×H×D): |
78mm×70mm×21mm |
Material: |
Metal |
Accessories 1Ch Ethernet over Coaxial Converter with PoE+ 300M
Accessories Advantages:
· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
· Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
· Input Voltage: DC12V~80V.
· 2pc BNC design, support to connect Max. 7 channels branch line
· Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
· Advanced 128-bit AES encrypted transmission and PoE+ power technology
· Excellent Protection: Built-in transient protection; industrial temperature range.
Excellent lightning protection and strongly Anti-interference, surge protection.
Technical Indexes
| Technology | Standard |
HomePlug AV IEEE802.3 10/100 Ethernet (100Mbps) IEEE802.3U Fast Ethernet |
| Encryption Algorithm | Algorithm | 128-bit AES |
| Power | Supply mode | Power adapter |
| Voltage range | DC12V~80V | |
| Consumption | <2W | |
| Ethernet Interface | Port | RJ45 |
| Signal Type | 10/100Base-Tx | |
| Distance | 100M (Max) | |
| Coaxial Connector | Port | BNC |
| Transmission rate | 80Mbps TCP, 90Mbps UDP | |
| Distance | 1200M (Max) | |
| Transmission Distance | Without PoE | 1200m |
| With PoE | 300m | |
| Mechanical | Dimension (W×H×D) | 78mm×70mm×21mm |
| Weight | 0.15KG | |
| Material | Metal | |
| Color | Black |
Overview

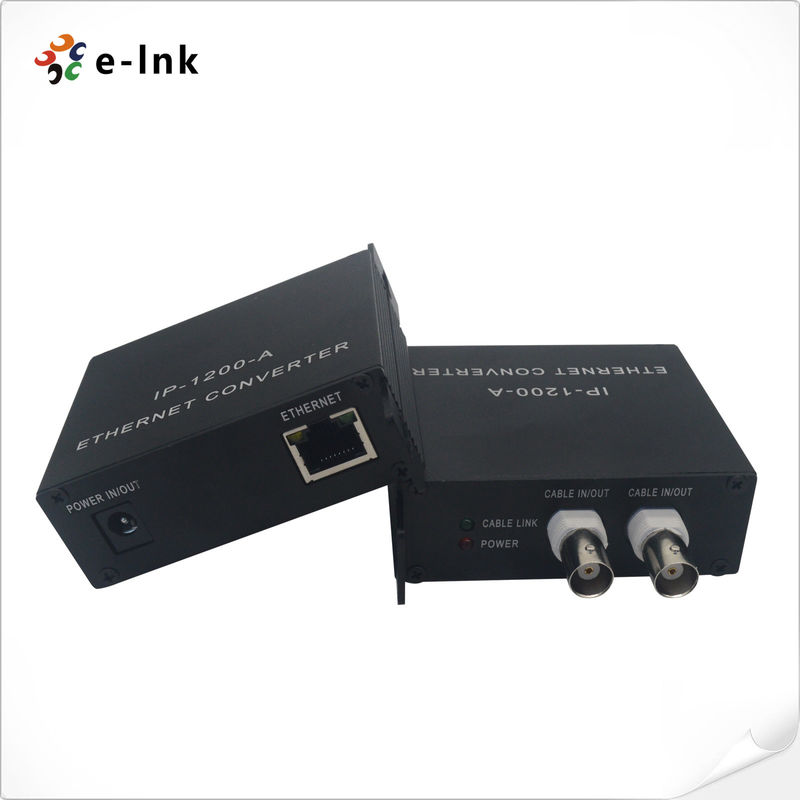

The LNK-IP1200A Ethernet over Coaxial Converter is a new designed Ethernet Extender Device.
This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able to live transmit multi-channel
Power + Network date signal, the Max distance is up to 1200M. 2pc BNC design, support connect 2 channel branch line at same time.
The total power of electricity is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps.
These series products are widely used in CCTV surveillance and remote network extension.
Ordering Information
| LNK-IP1200A | Ethernet over Coaxial Converter, 1200m transmission distance, including Master and Slave, not including power supply adapter |
| LNK-IP1200AP | 1Ch Ethernet over Coaxial Converter with PoE+ 300m, including Master and Slave, not including power supply adapter |
