Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-DEC110-T/R
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD80/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Maximum Distance: |
Cat5UTP Up To 100m |
Ethernet Connector: |
1 X RJ45 |
Coaxial Connector: |
1 BNC (female) |
Distance: |
Up To 1200m (no PoE) |
Input Power: |
DC18V~48V |
Weight: |
0.5kg |
Maximum Distance: |
Cat5UTP Up To 100m |
Ethernet Connector: |
1 X RJ45 |
Coaxial Connector: |
1 BNC (female) |
Distance: |
Up To 1200m (no PoE) |
Input Power: |
DC18V~48V |
Weight: |
0.5kg |

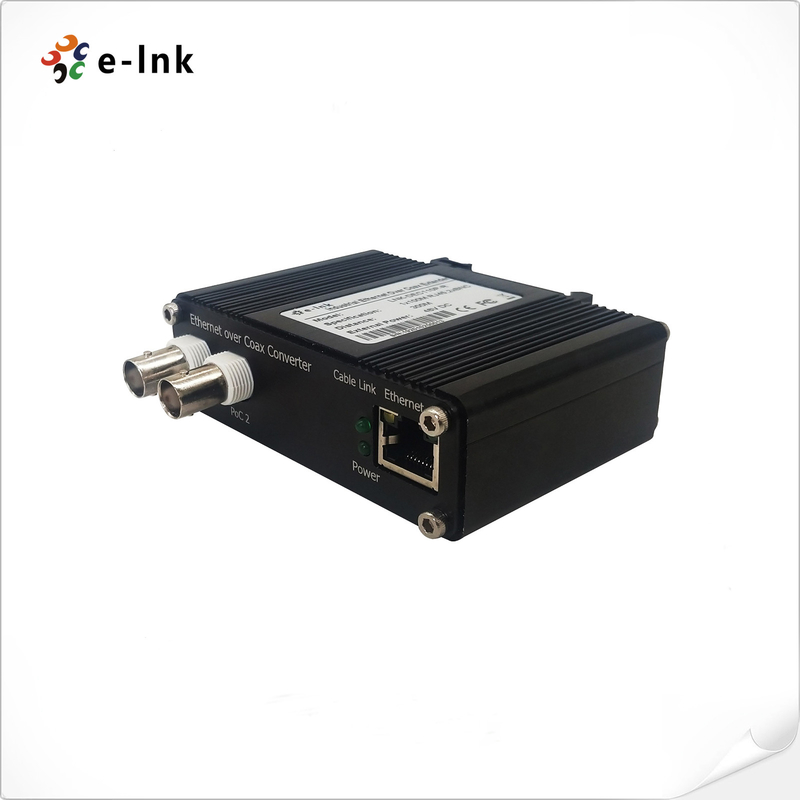

Accessories 1Ch DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender
Accessories Advantages:
Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
Input Voltage: DC18V~48V.
2pc BNC design, support to connect Max. 7 channels branch line
Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
Excellent Protection: Built-in transient protection; industrial temperature range.
Excellent lightning protection and strongly Anti-interference, surge protection.
Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| Cabling | 10Base-T: Cat 3,4,5, or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5UTP up to 100m |
| Connector | 1 x RJ45 |
| Coaxial | |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 1 BNC (female) |
| Distance | Up to 1200m (no PoE) |
| Data Rate | |
| Downlink (TX to RX) | 90Mbps (Max.) |
| Uplink (RX to TX) | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Electrical and Mechanical | |
| Input Power | DC18V~48V |
| Power Consumption | 8W Max |
| Dimensions (W x D x H) | 95 × 67 × 30 mm |
| Weight | 0.5kg |
| Casing | Aluminum case |
Overview
LNK-DEC110 Series DIN-Rail Ethernet over Coaxial Converter is a new designed Ethernet Extender Device.
This Device is designed to extend Ethernet Network signal and Power over existing coaxial cable, and able
to live transmit multi-channel Power + Network date signal, the Max distance is up to 1200M.
2pc BNC design supports to connect 2 channel branch lines at same time.
Ordering Information
| Model | Description |
| LNK-DEC110-T/R |
DIN-Rail EoC Converter, 1200m transmission distance, including Transmitter and Receiver, not including power supply adapter |
