Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-EOC180P-R
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD500/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Distance: |
100m |
RJ-45 Connector: |
4 |
Type: |
Cat5UTP |
Casing: |
Aluminum Case |
Distance: |
100m |
RJ-45 Connector: |
4 |
Type: |
Cat5UTP |
Casing: |
Aluminum Case |

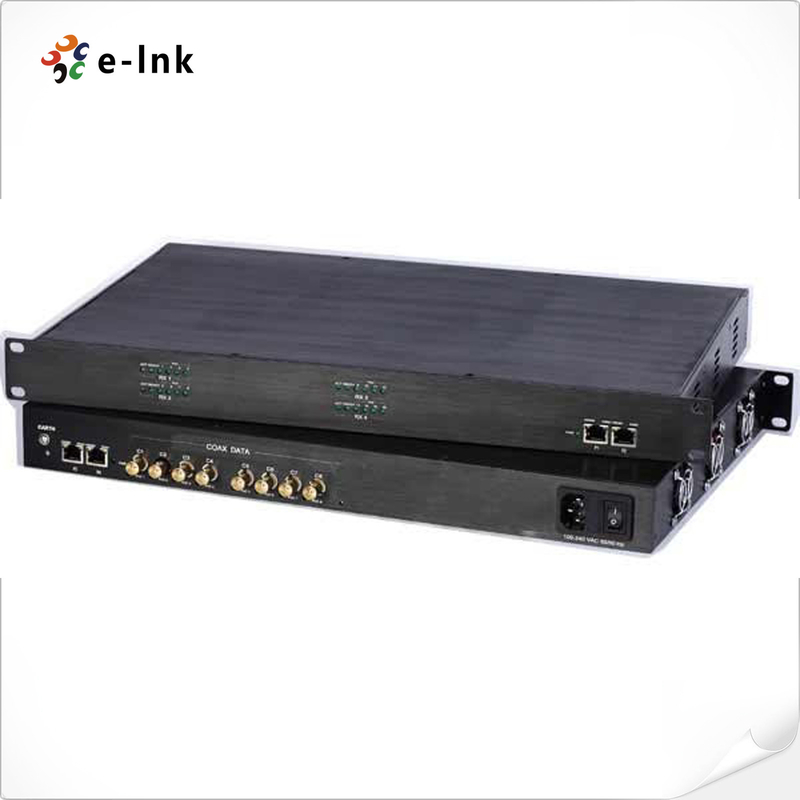

Cat5UTP Fiber Optic Accessories 1000Base TX Ethernet Over Coax Extender
Accessories 8-port Coax to 4-port 1000Base-TX Ethernet over Coax Extender
Accessories Advantages:
Connecting up to 8 x LNK-DEC110P-T and IP Cameras
Power over Coaxial (Max. 400W total output)
Data Rate per port up to: 40Mbps (Downlink), 10Mbps (Uplink)
Max. Distance: 800m over Coax (RG59/U)
19” 1U Rack-mount
Technical Indexes
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3ab 1000Base-T | |
| Cabling | 100Base-TX: Cat5 or above |
| Maximum Distance | 100m |
| RJ-45 | 4 |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 8 BNC Group (female) |
| Distance | 800m |
| Input Power | 100-240VAC, 50/60Hz |
| Power Consumption | 16W Max. w/o PoC |
| 500W Max. w/o PoC | |
| Dimensions (W x D x H) | 483 × 300 × 44 mm (1RU) |
| Weight | 4 Kg |
| Casing | Aluminum |
Overview
The LNK-EOC180P receiver works with the transmitter of 1 port Ethernet Extender over Coax with PoC (LNK-DEC110P-T)
to provide Ethernet Extension of 8 channel 10/100Base-TX over Coaxial cable to 4-port 10/100/1000Mbps Ethernet.
The maximum transmission distance is 800m.
Ordering Information
| Model | Description |
| LNK-EOC180P-R | Receiver of 8-port Coax to 4-port 10/100/1000Base-TX Ethernet Switch with PoC |
