12 Port DIN Rail LC Fiber Patch Panel 2 Cable Entries Distribution

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-FSB-Q-12LC

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD35/PCS

Packaging Details: Accessories Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

DIN Rail lc fiber patch panel

,

12 Port lc fiber patch panel

,

LC fiber distribution panel

Port:
12
Adapters:
LC
Option:
DIN Rail
Protection:
IP20
Port:
12
Adapters:
LC
Option:
DIN Rail
Protection:
IP20
Description
12 Port DIN Rail LC Fiber Patch Panel 2 Cable Entries Distribution

Accessories 12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries

Accessories Advantages:

Up to 12 ports LC-Quad adapters

Din-rail mounting

Space-saving installation

IP20 protection

2x rear entries (PG 11 cable gland)

Grey color (RAL 7035)

-40°C to 80°C (-40°F to 176°F) operating temperature

Other configurations on demand

Technical Indexes

General
Application Harsh environment,
Design Splice distributor
Color Gray
Dimensions (LxWxH) 131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight 0.6KG
Mounting Options DIN-Rail
Connections/Interfaces
Cable access/outlet From top or bottom, straight or inclined
Equipped Adapters
LC-Quad Max. 12pcs
Mechanical
Strain relief PG gland
Materials
Casing Al (Aluminum)

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion splicing

of the fibers. The patch panel can be loaded with 12 LC Quad adapters.

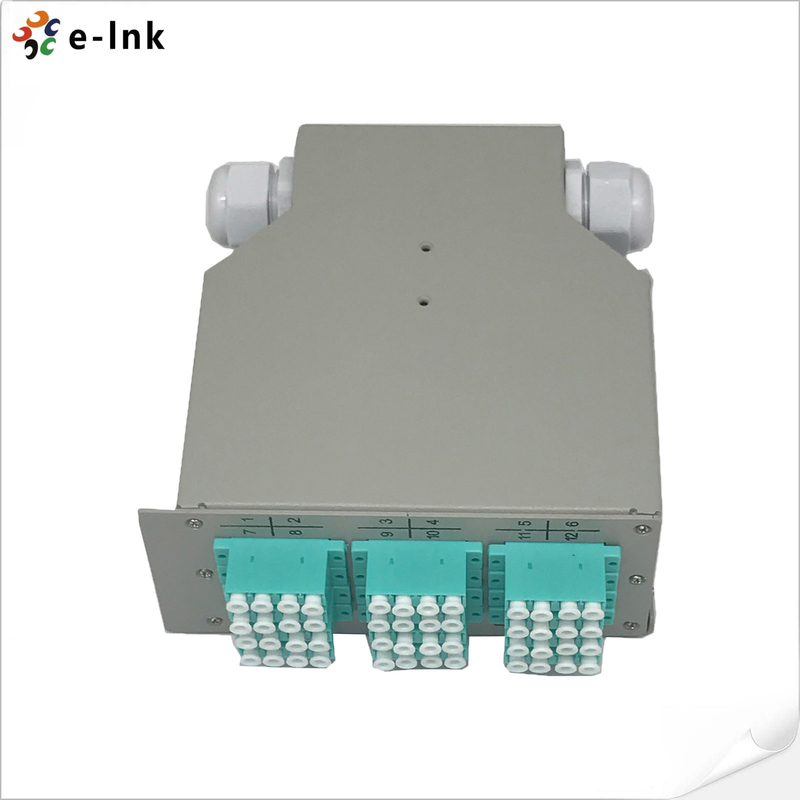

12 Port DIN Rail LC Fiber Patch Panel 2 Cable Entries Distribution 0

Ordering Information

Model Description
LNK-FSB-Q-12LC 12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs LC/PC SM Quad adapters
