IEEE 802.3at Din Rail Mounted Industrial POE Switch 4 Channel 12V-48V

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC104GP-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$29.9/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

IEEE 802.3at Industrial POE Switch

,

12V Industrial POE Switch

,

48V din rail mounted switch

POE:
IEEE 802.3at Power Over Ethernet
Connector:
4 X RJ45
Optical Port:
1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
PoE Budget 1:
60-watt PoE Budget (12VDC)
PoE Budget 2:
90-watt PoE Budget (24VDC)
PoE Budget 3:
120-watt PoE Budget (48VDC)
POE:
IEEE 802.3at Power Over Ethernet
Connector:
4 X RJ45
Optical Port:
1 X SFP 1000Base-X Or 100Base-FX (auto Detection)
PoE Budget 1:
60-watt PoE Budget (12VDC)
PoE Budget 2:
90-watt PoE Budget (24VDC)
PoE Budget 3:
120-watt PoE Budget (48VDC)
Description
IEEE 802.3at Din Rail Mounted Industrial POE Switch 4 Channel 12V-48V

Mini Gigabit Industrial POE Switch 1x 10/100M SFP + 4x Gigabit POE Ports 12-48V

Industrial POE Switch Advantages

  • 100/1000BASE-X SFP slots for SFP type auto detection
  • 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
  • 12~48VDC wide range power input with power booster function
  • Supports 802.3x Flow control
  • Supports DIN-Rail and Wall-mount installation
  • Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

Specifications

Interface
Connector: 4 x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29m
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

Overview

LNK-IMC104GP-SFP Series is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster.

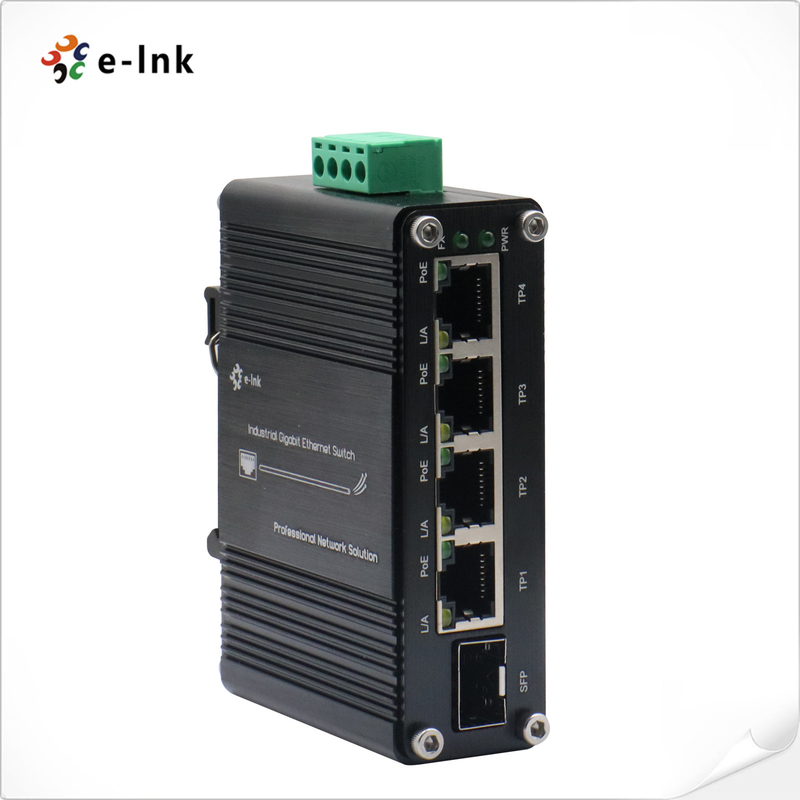

IEEE 802.3at Din Rail Mounted Industrial POE Switch 4 Channel 12V-48V 0

IEEE 802.3at Din Rail Mounted Industrial POE Switch 4 Channel 12V-48V 1

Order Information

Model Description
LNK-IMC104GP-SFP Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
