SFP 2 Ports Ruggedized Gigabit Industrial POE Switch 48 Volt -12 Volt

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC202GP-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$95-110/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Mini Industrial POE Switch

,

Gigabit Industrial POE Switch

,

ruggedized poe switch

POE:
IEEE 802.3at Power Over Ethernet
Connector:
2 X RJ45 + 2 X SFP
Input Power:
12~48VDC, 2-pin Terminal Block
Output Power:
48VDC
Power Consumption:
65W Max.
Mounting Options:
DIN-Rail / Wall-mount
POE:
IEEE 802.3at Power Over Ethernet
Connector:
2 X RJ45 + 2 X SFP
Input Power:
12~48VDC, 2-pin Terminal Block
Output Power:
48VDC
Power Consumption:
65W Max.
Mounting Options:
DIN-Rail / Wall-mount
Description

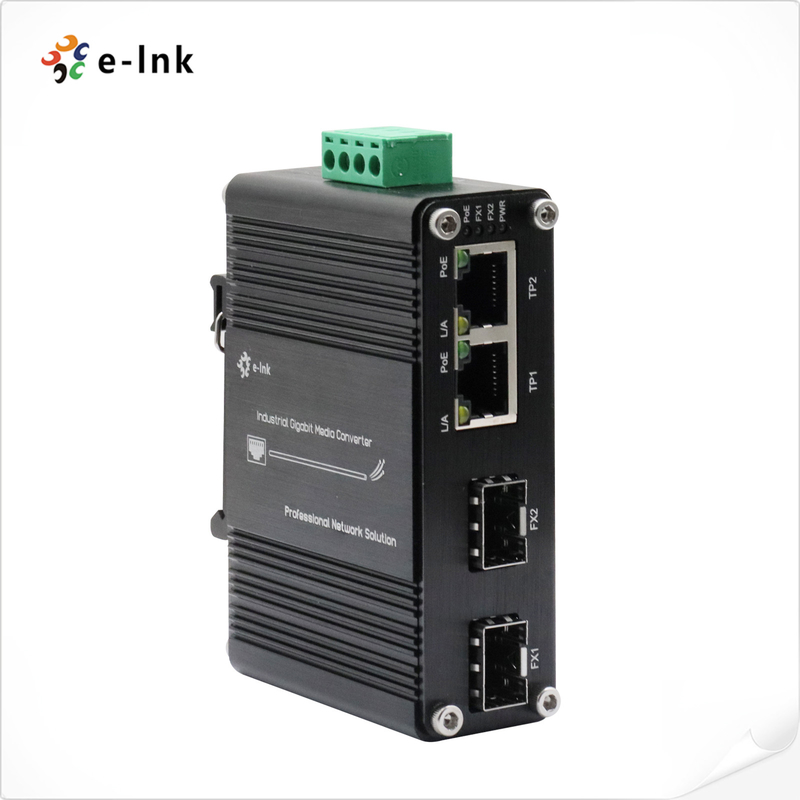

SFP 2 Ports Ruggedized Gigabit Industrial POE Switch 48 Volt -12 Volt

Mini Gigabit Industrial POE Switch 12-48V 2x 10/100M SFP + 2x Gigabit POE Ports​

Industrial POE Switch Advantages

  • 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
  • Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)
  • Power booster function with wide range 12~48VDC Power Input
  • Supports DIN-Rail & Wall-mount installation
  • Environmentally hardened -40°C to 75°C
    (-40°F to 167°F) operating temperature

Specifications

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Interface

Connector:

2 x RJ45

Optical Port:

2 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

65W Max.

5W Max. 0.1A@48VDC (PoE not in use)

PoE

Port:

RJ45 Port 1 ~ Port 2

Max. Power per Port:

30W Max per port (Alternative B Mode)

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

SFP 2 Ports Ruggedized Gigabit Industrial POE Switch 48 Volt -12 Volt 0

Order Information

Model Description
LNK-IMC202GP-SFP Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
