Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-GYM7208GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
POE: |
IEEE 802.3af /IEEE 802.3at |
Power Budget: |
Max. PoE Output Power Budget 30W |
Redundant Power Input: |
DC 48-57V |
RJ45 Port And Speed: |
8x10/100/1000Base-TX 802.3at PoE |
Fiber Port And Speed: |
2x1000Base-FX SFP (Dual Mode, Auto Detection) |
Protection Grade: |
IP40 Aluminum Case |
POE: |
IEEE 802.3af /IEEE 802.3at |
Power Budget: |
Max. PoE Output Power Budget 30W |
Redundant Power Input: |
DC 48-57V |
RJ45 Port And Speed: |
8x10/100/1000Base-TX 802.3at PoE |
Fiber Port And Speed: |
2x1000Base-FX SFP (Dual Mode, Auto Detection) |
Protection Grade: |
IP40 Aluminum Case |

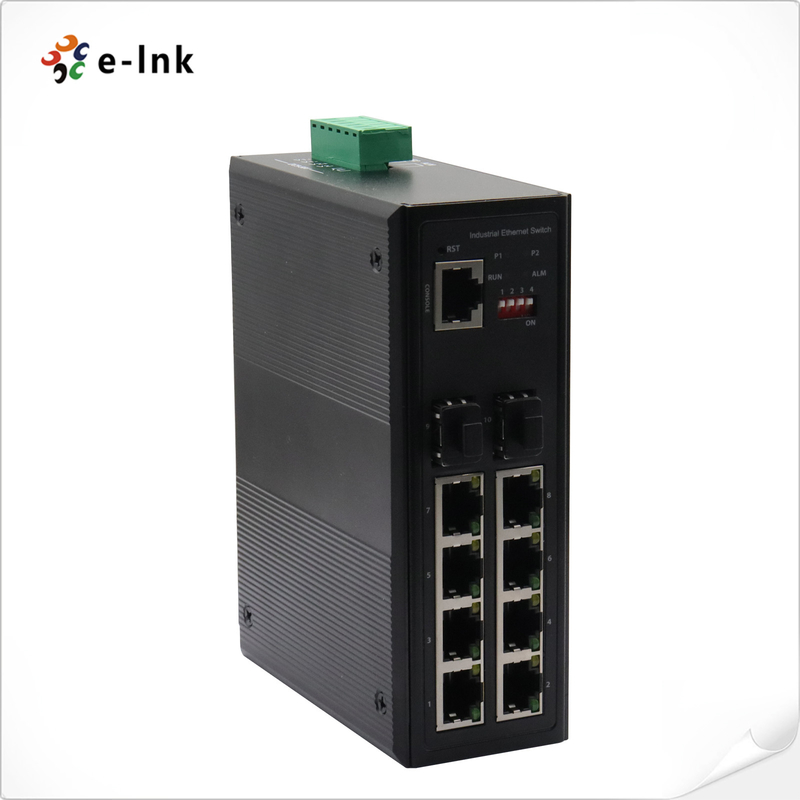

Gigabit Managed Industrial POE Switch 8x10/100/1000M PoE + 2x100/1000M SFP
Industrial POE Switch Advantages
Specifications
Physical Port | |
RJ45 port and speed | 8x10/100/1000Base-TX 802.3at PoE |
Fiber port and speed | 2x1000Base-FX SFP (Dual Mode, Auto Detection) |
Parameters | |
Ethernet standards |
IEEE 802.1x authentication IEEE 802.1q-Tagging IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree IEEE 802.3ad Trunking IEEE 802.3x flow control IEEE 802.1D Spanning Tree IEEE802.1ab LLDP |
Packet buffer | 4Mbits |
Maximum packet length | Up to 1532Bytes |
MAC address table | 16K |
Transmission mode | Store and Forward (full/half duplex mode) |
Exchange property | Delay time: < 7μs Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
PoE | |
PoE Standard | 8x IEEE 802.3af /IEEE 802.3at PoE |
Power budget | Max. PoE output power budget 30W |
LED Indicator | |
Power | Connect-always |
RJ45 | Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
Fiber | Link/Act: connect-always; data exchange-twinkle |
Power Information | |
Power access mode | Phoenix terminal, DC seat |
Redundant power input | DC 48-57V |
Overload protection | Yes |
Power reverse | Support |
Power consumption | Full-load<15W (Not use PoE) |
Physical Property | |
Protection grade | IP40 aluminum case |
Cooling mode | Natural cooling, no fan design |
Dimensions | 138mm x 106mm x 41mm (L x W x H) |
Installation mode | DIN rail/wall-mountable |
Weight | 600g |
Working Environment | |
Operating Temperature | -40℃~80℃ |
Operating Humidity | 5%~90% non-condensing |
Storage Temperature | -40℃~80℃ |
Overview
LNK-GYM7208GP-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-T 802.3at PoE+ and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link.
Order Information
Model | Description |
LNK-GYM7208GP-SFP | Managed 8-Port 10/100/1000Base-T PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. | |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
► Power Supply is to be purchased separately. |
