Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-GYM7408GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
POE Standard: |
8 X IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
30W |
Power Supply: |
DC 48-57V |
RJ45 Interface: |
8x10/100/1000Base-TX 802.3at PoE |
Fiber Interface: |
4x1000Base-FX SFP (Dual Mode, Auto Detection) |
Installation: |
DIN Rail/Wall-mountable |
POE Standard: |
8 X IEEE 802.3af /IEEE 802.3at PoE |
Power Budget: |
30W |
Power Supply: |
DC 48-57V |
RJ45 Interface: |
8x10/100/1000Base-TX 802.3at PoE |
Fiber Interface: |
4x1000Base-FX SFP (Dual Mode, Auto Detection) |
Installation: |
DIN Rail/Wall-mountable |

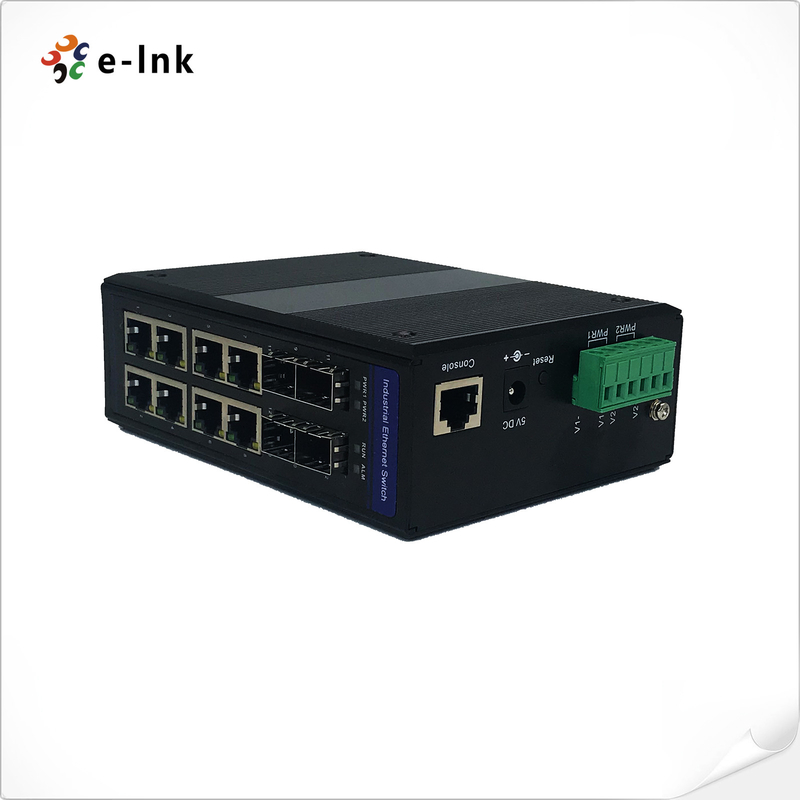

Industrial Gigabit Managed POE Switch with 8x10/100/1000M PoE + 4x100/1000M SFP
Industrial POE Switch Advantages
Specifications
| Physical Port | |
| RJ45 port and speed | 8 x 10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 4 x 100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| PoE | |
| Power budget | Max. PoE output power budget 30W |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 48-57V |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Installation mode | DIN Rail/Wall-mountable |
| Weight | 700g |
| Working Environment | |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~85℃ |
Overview
LNK-GYM7408GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 8-Port 10/100/1000Base-T 802.3at PoE+ and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission.
Order Information
| Model | Description |
| LNK-GYM7408GP-SFP | Industrial 8-port 10/100/1000T 802.3at PoE + 4-port 100/1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
