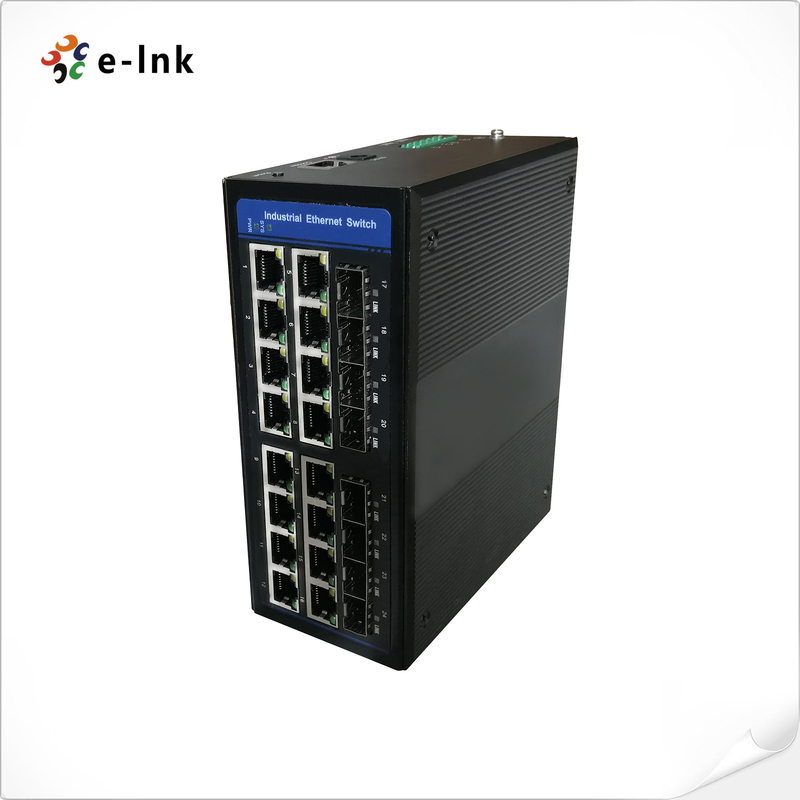

Gigabit Industrial Network Switch POE managed hardened poe switch 8x100/1000M SFP

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-GYM7816GP-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Gigabit industrial network switch poe

,

SFP industrial network switch poe

,

managed hardened poe switch

POE Type:
16 X IEEE 802.3af /IEEE 802.3at PoE
Power Power:
Max. PoE Output Power Budget 30W
Power Input:
DC 48-57V
RJ45:
16x10/100/1000Base-TX 802.3at PoE
Fiber:
8x1000Base-FX SFP (Dual Mode, Auto Detection)
Protection Grade:
IP40 Aluminum Case
POE Type:
16 X IEEE 802.3af /IEEE 802.3at PoE
Power Power:
Max. PoE Output Power Budget 30W
Power Input:
DC 48-57V
RJ45:
16x10/100/1000Base-TX 802.3at PoE
Fiber:
8x1000Base-FX SFP (Dual Mode, Auto Detection)
Protection Grade:
IP40 Aluminum Case
Description
Gigabit Industrial Network Switch POE managed hardened poe switch 8x100/1000M SFP

Industrial Gigabit Managed POE Switch 16x10/100/1000M PoE + 8x100/1000M SFP​

Industrial POE Switch Advantages

  • 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
  • 16-port 10/100/1000T 802.3at PoE + 8-port 100/1000X SFP

Specifications

Physical Port
RJ45 port and speed 16x10/100/1000Base-TX 802.3at PoE
Fiber port and speed 8x100/1000Base-FX SFP (Dual Mode, Auto Detection)
PoE
PoE Standard 16x IEEE 802.3af /IEEE 802.3at PoE
Power budget Max. PoE output power budget 30W
Power Information
Power access mode Phoenix terminal, DC seat
Redundant power input DC 48-57V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W (Not use PoE)
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 160mm x 130mm x 70mm (L x W x H)
Installation mode DIN Rail/Wall-mountable
Weight 1000g
Working Environment
Operating Temperature -40℃~80℃
Operating Humidity 5%~90% non-condensing
Storage Temperature -40℃~85℃
Warranty
MTBF 500,000 hours
Defects Liability Period 5 year warranty, lifetime technical support

Overview

LNK-GYM7816GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 16-Port 10/100/1000Base-T 802.3at PoE+ and 8-port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission

Gigabit Industrial Network Switch POE managed hardened poe switch 8x100/1000M SFP 0

Gigabit Industrial Network Switch POE managed hardened poe switch 8x100/1000M SFP 1

Order Information

Model Description
LNK-GYM7816GP-SFP Managed 16-Port 10/100/1000Base-T PoE + 8-port 100/1000Base-X SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
