Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-HF201KM
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
HDMI Fiber Optic Converter |
Video Standards: |
HDMI 2.0 And HDCP 2.2 |
Maximum Data Rate: |
18Gbps |
Fiber Type: |
Single-mode Or Multimode |
Transmission Distance: |
Up To 10KM |
Warranty: |
1 Year |
Keyword: |
HDMI Fiber Optic Converter |
Video Standards: |
HDMI 2.0 And HDCP 2.2 |
Maximum Data Rate: |
18Gbps |
Fiber Type: |
Single-mode Or Multimode |
Transmission Distance: |
Up To 10KM |
Warranty: |
1 Year |

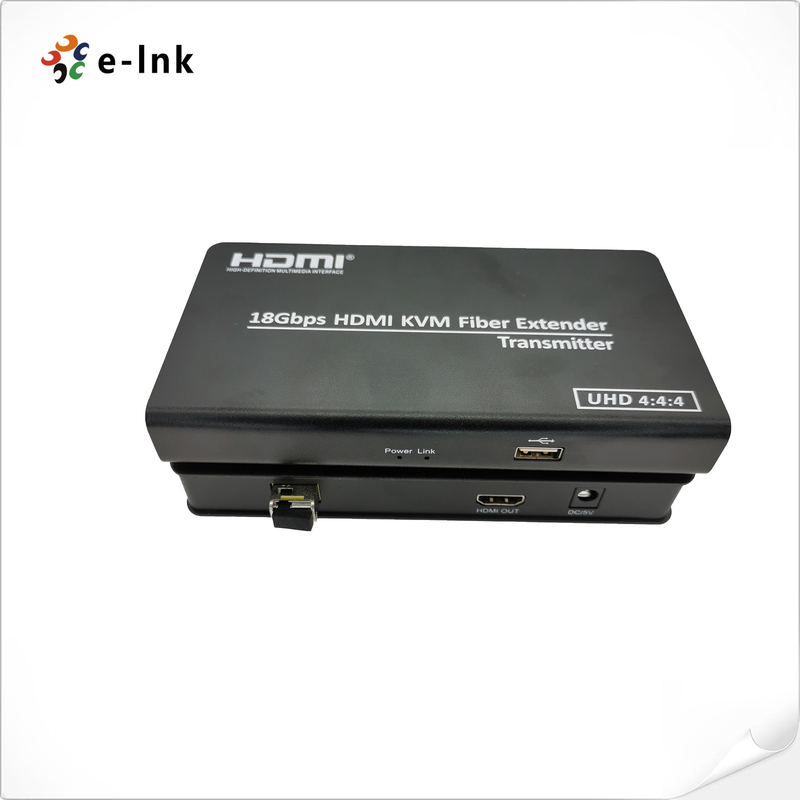

HDMI Fiber Extender 4K HDMI 2.0 KVM USB Over Fiber Optic HDMI Extender
Fiber Optic HDMI Converter Advantages
► Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
► Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
► Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse
► Fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
Technical Indexes
|
Video |
Maximum pixel clock |
600MHz |
|
Resolution range |
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P |
|
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode or Multimode |
|
|
Wavelength |
Single-mode 1310nm, Multimode 850nm |
|
|
Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 5W |
|
|
Temperature |
Operating: -10℃ ~ +55℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
163 x 86 x 24(mm) |
|
|
Gross weight |
1.471KG |
Overview
Ordering Information
|
Model |
Description |
|
LNK-HF201KM-M |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
|
LNK-HF201KM-10 |
4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
