Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-H4K100
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
HDMI Fiber Optic Converter |
Standards: |
HDMI 1.4; HDCP 1.2 |
Power Supply: |
DC 5V/2A |
Resolution Range: |
Up To 3840x2160@30Hz |
Interface Bandwidth: |
10Gbps |
Wavelength: |
850nm / 1310nm |
Keyword: |
HDMI Fiber Optic Converter |
Standards: |
HDMI 1.4; HDCP 1.2 |
Power Supply: |
DC 5V/2A |
Resolution Range: |
Up To 3840x2160@30Hz |
Interface Bandwidth: |
10Gbps |
Wavelength: |
850nm / 1310nm |

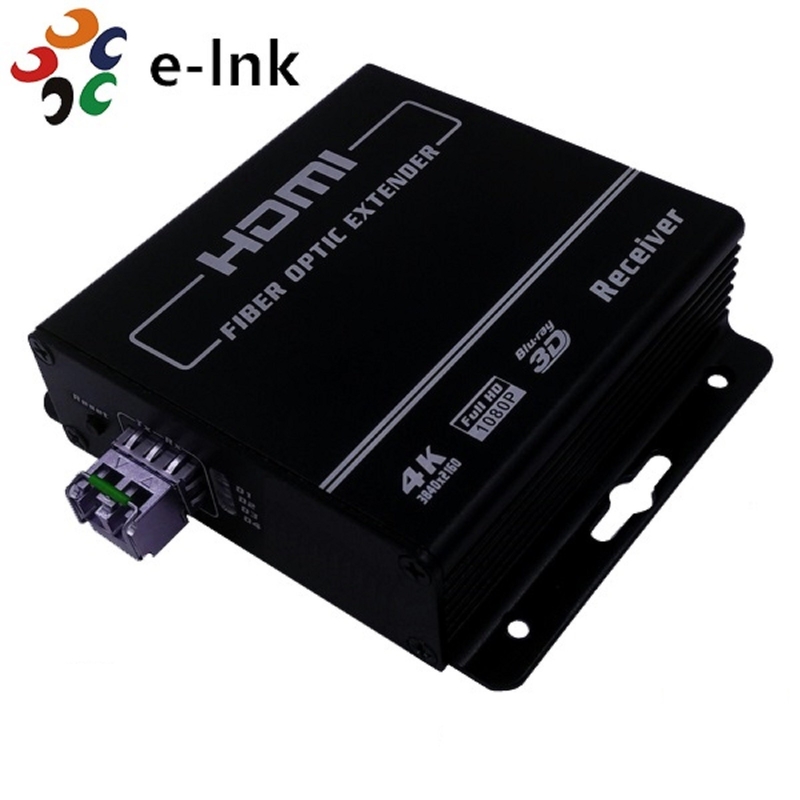

HDMI Fiber Extender 4K HDMI Fiber Optic Converter Up To 60Km With EDID
4K HDMI Fiber Extender Advantages
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play
Technical Indexes
|
Video |
Maximum pixel clock |
340MHz |
|
Maximum data rate |
10.2Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Multi-mode / single-mode (optional) |
|
|
Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
|
Other |
Power dissipation |
Max 4W |
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
104*89*28mm |
Sender
Receiver
Ordering Information
|
Item |
Description |
|
LNK-H4K100 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Multimode, LC, 300m, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H4K100S-10 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 10km, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H4K100S-40 |
4K (3840*2160/30P) HDMI Fiber Extender, SFP Port, Single mode, LC, 40km, including 1 transmitter & 1 receiver, used by pairs |
