Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-KHX2240
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber To Hdmi Converter |
AC Power Adapter: |
100-240VAC / 50-60Hz 0.2A |
Optical: |
1x SFP+ Port |
KM Support: |
USB Keyboard / USB Mouse |
Dimensions: |
89mm X 104 Mm X 28.3 Mm |
Warranty: |
2 Year Warranty |
Keyword: |
Fiber To Hdmi Converter |
AC Power Adapter: |
100-240VAC / 50-60Hz 0.2A |
Optical: |
1x SFP+ Port |
KM Support: |
USB Keyboard / USB Mouse |
Dimensions: |
89mm X 104 Mm X 28.3 Mm |
Warranty: |
2 Year Warranty |

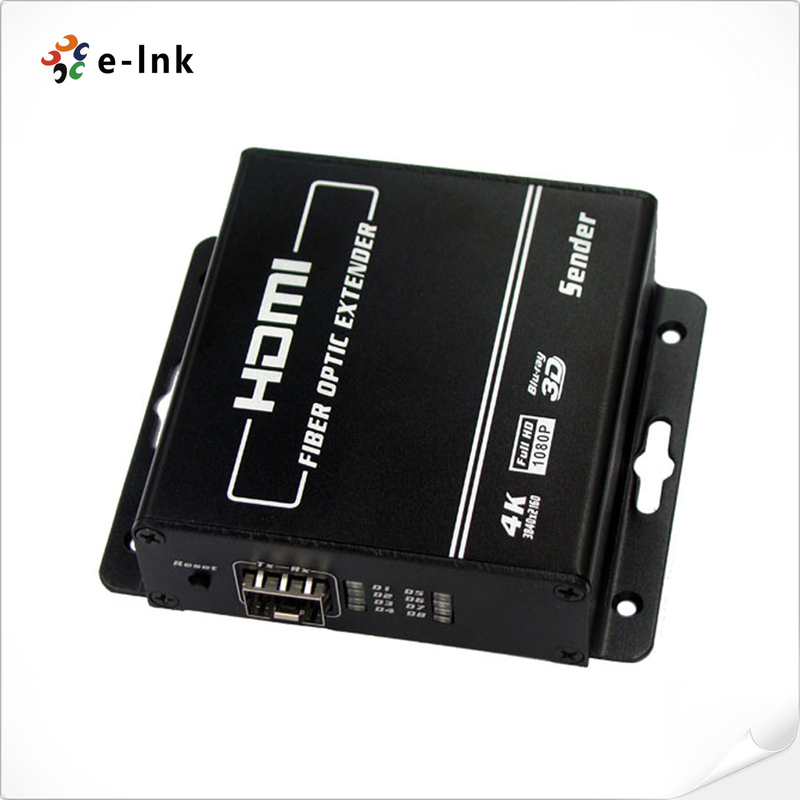

Fiber Video Extender 4K HDMI KVM Fiber Optic Converter USB Keyboard Mouse
4K HDMI Fiber Extender Advantages
► High-Definition Multimedia Interface
► High Performance, Real Time Transmission
► Up to 300m distance by OM3 Fiber Optical Cable
► Low RFI / EMI profile for sensitive applications
Technical Indexes
Compliance | HDMI v1.4 |
Maximum Pixel Clock Frequency | 340 MHz |
Maximum Video Bit Rate | 3.40 Gbps |
Supported Resolutions | 1920x1080/60p,3840x2160/30p, 4096x2160/30p, |
Digital Audio Support | 7.1 channel LPCM, 192 kHz, 24-bit audio capability |
Cable | |
Fiber Cable Type / Max. Length | 50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) |
Mechanical | |
Construction | High-impact Alufer enclosure |
Dimensions (L x W x H) | 89mm x 104 mm x 28.3 mm |
Net Weight | 500 g |
Power Requirements | |
External AC Power Adapter | Input: 100-240VAC / 50-60Hz 0.2A |
Overview
The extender set consists of an optical transmitter module that converts the DVI / HDMI signals into light pulses for transmission over a 2 cores fiber. An optical receiver module converts the light pulses back to a DVI / HDMI signal for display on a monitor or projector. It supports HDMI v1.4 signals with resolutions up to 4K (4096x2160 / 30p) over cable distances up to 300m.
Ordering Information
Item | Description |
LNK-KHX2240-S | 4K HDMI KVM Fiber Optic Extender Sender Unit |
LNK-KHX2240-R | 4K HDMI KVM Fiber Optic Extender Receiver Unit |
