Modem Industrial Optical Fiber To Rj45 Converter RS232 RS485 RS422 Serial

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IRS93 Series

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Modem Industrial Fiber Media Converter RS485

,

RS232 ethernet to optical converter

,

1CH Optical Fiber To Rj45 Converter

Fiber Connector:
SC Standard, ST/FC/LC Optional
Serial Interface:
Industrial Terminal
Standard:
EIA /TIA RS232/485/422
Serial Distance:
RS232: 15 Meters, RS485/422: 1000 Meters
Rate:
Max 2Mbps
Power Supply:
DC12~48V
Fiber Connector:
SC Standard, ST/FC/LC Optional
Serial Interface:
Industrial Terminal
Standard:
EIA /TIA RS232/485/422
Serial Distance:
RS232: 15 Meters, RS485/422: 1000 Meters
Rate:
Max 2Mbps
Power Supply:
DC12~48V
Description
Modem Industrial Optical Fiber To Rj45 Converter RS232 RS485 RS422 Serial

Serial Fiber Media Converter Industrial RS232 RS485 RS422 Fiber Optic Modem​

Fiber Media Converter Advantages

  • Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 80Km on SMF
  • EIA /TIA standard RS232/485/422, 0~2Mbps rate

Specifications

Fiber Connector SC standard, ST/FC/LC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Interface Industrial Terminal
Signal Ports

1Ch RS232 - 1Mbps

1Ch R485 - 1Mbps

2Ch RS485H- 2Mbps

2Ch RS485H can be grouped into 1Ch High Speed RS422

Standard EIA /TIA RS232/485/422
Serial Distance RS232: 15 meters, RS485/422: 1000 meters
Rate Max 2Mbps
RS-232 TXD, RXD, GND - Bi-directional
RS-485 D+, D-, GND - Bi-directional
Power Supply DC12~48V
Power rate <5W

Overview

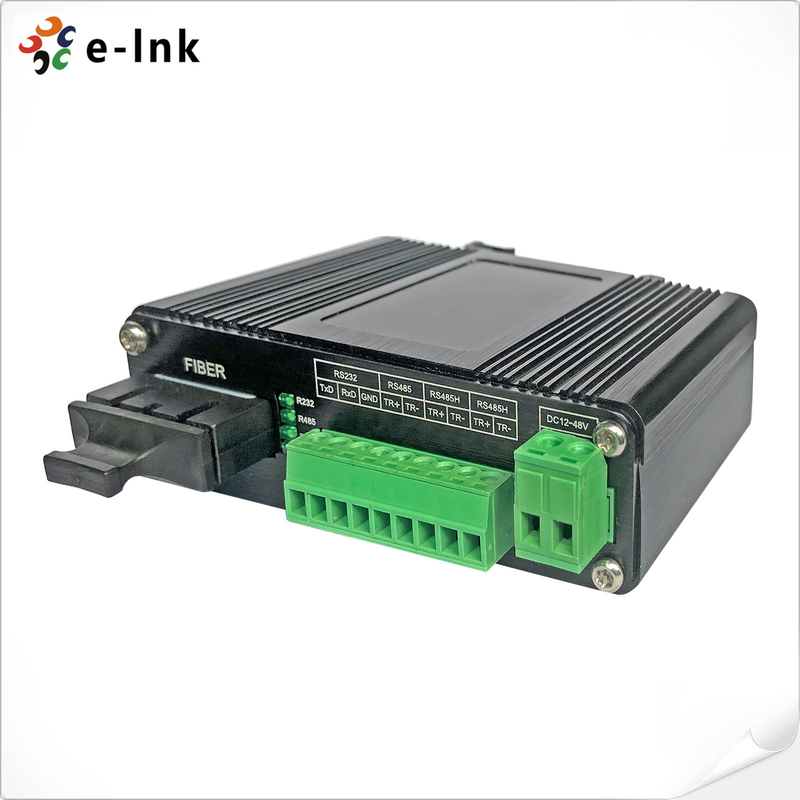

LNK-IRS93 series is an industrial grade RS232/RS485/RS422 to fiber optic converter which converts a standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.

Modem Industrial Optical Fiber To Rj45 Converter RS232 RS485 RS422 Serial 0

Modem Industrial Optical Fiber To Rj45 Converter RS232 RS485 RS422 Serial 1

Order Information

Model Description
LNK-IRS93-SFP Industrial Serial RS232/RS485/RS422 with SFP port
LNK-IRS93-SCMM Industrial Serial RS232/RS485/RS422 , SC MM 850nm, 550m
LNK-IRS93-SC20 Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20m
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
