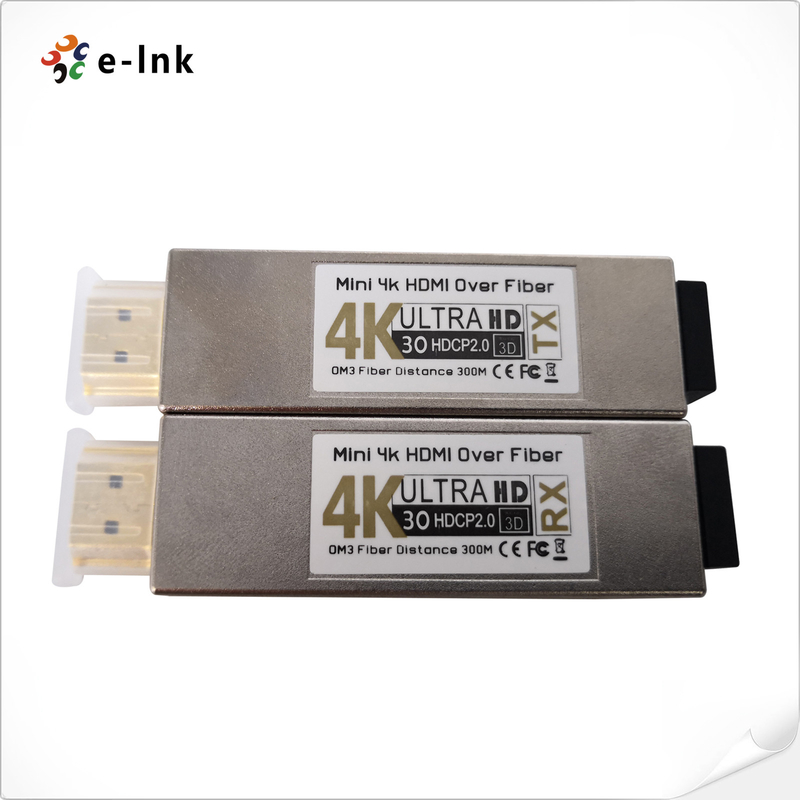

Mini Multimode HDMI Fiber Extender Optical Transceiver 4K X 2K OM3

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-106M

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

HDMI Fiber Extender Transceiver

,

Multimode HDMI Fiber Extender

,

Mini HDMI Optical Transceiver

Name:
HDMI Fiber Extender
Warranty:
2 Year
Type Of Extender:
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable
Input Signals:
HDMI
Signal Support:
HDMI 1.4a HDMI Format Standard And HDCP Compliant
Video Support:
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz
Fiber Connector:
Dual LC
Transmission Distance:
Multi Mode, Up To 984ft (300M)
Name:
HDMI Fiber Extender
Warranty:
2 Year
Type Of Extender:
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable
Input Signals:
HDMI
Signal Support:
HDMI 1.4a HDMI Format Standard And HDCP Compliant
Video Support:
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz
Fiber Connector:
Dual LC
Transmission Distance:
Multi Mode, Up To 984ft (300M)
Description
Mini Multimode HDMI Fiber Extender Optical Transceiver 4K X 2K OM3

Mini 4K HDMI Fiber Extender Optical Transceiver 4K x 2K OM3 Multi mode Fiber

HDMI Fiber Extender Advantages

  • HDMI 1.4a and HCCP1.2 Support
  • Uncompressed transmission, No delay, No losses
  • DDC CEC HPD Signal Support
  • Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
  • Supports All Modes up to 4K*2K@30Hz Resolution
  • 850nm VCSEL and PIN Photodetector

HDMI Fiber Extender Specifications

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Signal Support HDMI 1.4a HDMI format standard and HDCP compliant
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Fiber Connector Double LC
Transmission Distance Multi Mode, up to 984ft (300M)
Operating Temperature 0°C to + 50°C
Storage Temperature -20°C to + 85°C
Humidity to 90% RH (non-condensing)
Safety Approvals CE, RoHS, FCC
Dimension (WxDxH) 3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight 0.1 kg / 0.22 lb
Operation Voltage 5VDC
Power Supply Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

HDMI Fiber Extender Overview

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K.

4 K HDMI OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers.

4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal.

Mini Multimode HDMI Fiber Extender Optical Transceiver 4K X 2K OM3 0

Mini Multimode HDMI Fiber Extender Optical Transceiver 4K X 2K OM3 1

Order Information

Item Description

LNK-106M Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
