Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-MH4K
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
HDMI Optical Converter |
Data Rate: |
Up To 10.3Gbps |
Fiber Connector: |
SFP/LC |
Resolution: |
4K*2K@30Hz |
Transmission Distance: |
Up To 80km |
Operating Temperature: |
-10~60°C |
Keyword: |
HDMI Optical Converter |
Data Rate: |
Up To 10.3Gbps |
Fiber Connector: |
SFP/LC |
Resolution: |
4K*2K@30Hz |
Transmission Distance: |
Up To 80km |
Operating Temperature: |
-10~60°C |

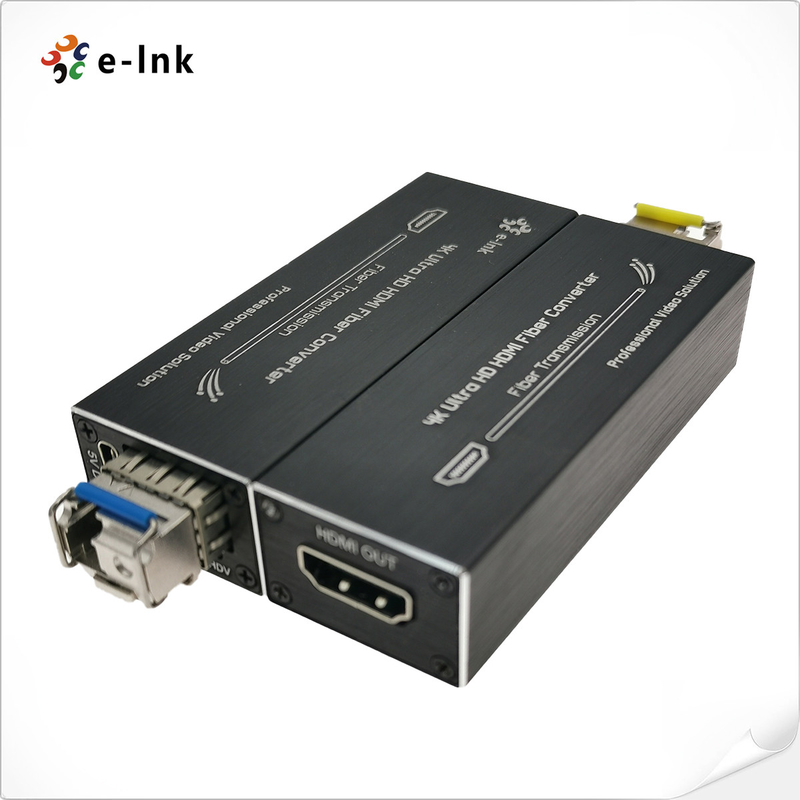

HDMI Fiber Extender HDMI 1.4a Video Signal Micro Mini 4K HDMI To Fiber Converter
HDMI To Fiber Converter Advantages
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Miniature form factor for ease of use and installation
Technical Indexes
|
Type of Extender |
Fiber Transmitter for HDMI signal over Optical Fiber Cable |
|
Signal Support |
HDMI 1.4a HDMI format standard and HDCP compliant |
|
Video Support |
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Dynamic EDID |
Plug & Play, no need to learn |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 to + 60°C |
|
Storage Temperature |
-20 to + 85°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
3.07 x 1.06 x 0.69in (78x27x17mm) |
|
Weight |
50g / 0.11 lb |
|
Power Supply |
5V DC (USB-C) |
Overview
The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K. The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal.
Ordering Information
|
Model |
Description |
|
LNK-MH4K-MM |
Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S20 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S40 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
|
LNK-MH4K-S80 |
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input |
