Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-MHA4K Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Product Type: |
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable |
Support Signal: |
HDMI 1.4a HDMI Format Standard And HDCP Compliant |
Support Video: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Connector Type: |
SFP LC |
Distance: |
300m (Over OM3 Fiber) / Up To 80km (Over Single-mode Fiber) |
Dimension (WxDxH): |
2.87 X 1.73 X 0.69in (73x44x17mm) |
Product Type: |
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable |
Support Signal: |
HDMI 1.4a HDMI Format Standard And HDCP Compliant |
Support Video: |
1920x1200 / 1080p@60Hz, Up To 4K*2K@30Hz |
Connector Type: |
SFP LC |
Distance: |
300m (Over OM3 Fiber) / Up To 80km (Over Single-mode Fiber) |
Dimension (WxDxH): |
2.87 X 1.73 X 0.69in (73x44x17mm) |

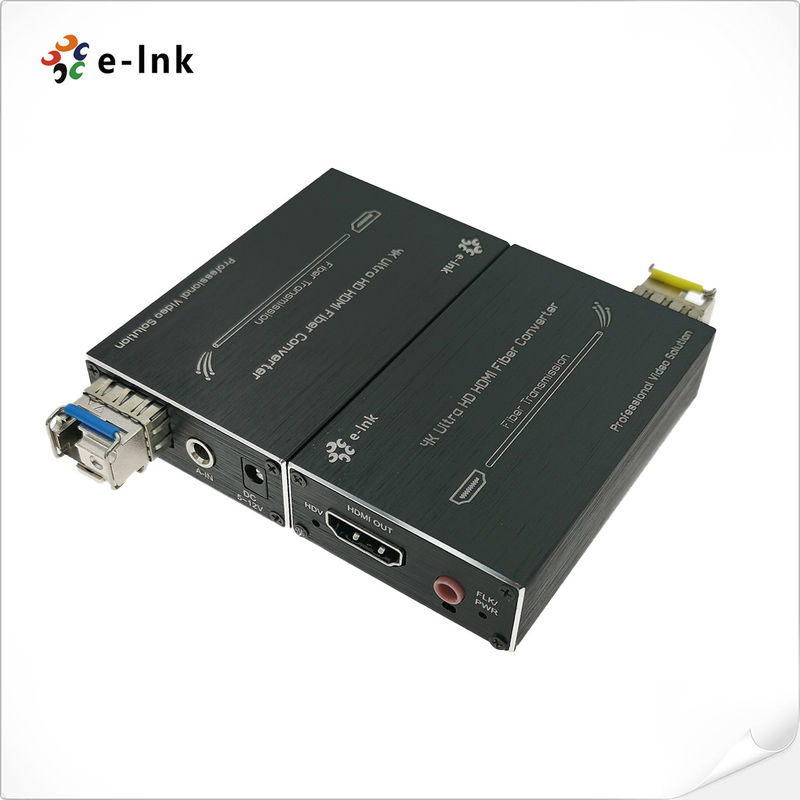

Mini 4K HDMI Fiber Extender HD 4K x 2K 30Hz with External Audio HDCP compliant
HDMI Fiber Extender Advantages
Specifications
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Connector | Female HDMI type A |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Color space, 420, 400 |
| Audio Interface | 3.5MM external stereo audio |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.3Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) | |
| Operating Temperature | -10 to + 60°C |
| Storage Temperature | -20 to + 85°C |
| Humidity | 5% to 90% RH (non-condensing) |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5~12V DC |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
Overview
The LNK-MHA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal and stereo audio over optical fiber up to distances of 80km, at a resolution of 4Kx2K.
Order Information
| Model | Description |
| LNK-MHA4K-MM | Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S20 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S40 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
