1080P HDMI Video Fiber Extender for with KVM RS232 Audio

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-KVM-HDMI-1D1BA1GO

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

1080P HDMI Kvm Extender

,

RS232 HDMI Kvm Extender

,

RS232 Fiber Video Extender

HDMI Standards:
HDMI V1.3
Pixel Clock:
165MHz
Data Rate:
2.97Gbps
Video Resolution:
1920*1080@60Hz
Power Input:
DC 12V/1A
Size:
168*115*28mm
HDMI Standards:
HDMI V1.3
Pixel Clock:
165MHz
Data Rate:
2.97Gbps
Video Resolution:
1920*1080@60Hz
Power Input:
DC 12V/1A
Size:
168*115*28mm
Description
1080P HDMI Video Fiber Extender for with KVM RS232 Audio

1080P HDMI Fiber Extender support USB KVM + RS232 + Bidi Stereo Audio + GPIO

HDMI Fiber Extender Advantages

► Support keyboard and mouse signal transmission;

► Support external stereo audio bi-directional transmission;

► Support RS232 signal unidirectional transmission;

► Support general-purpose input/output (GPIO) signal;

► Support HDMI loop out

Specifications

Parameter Description
Video Standards HDMI V1.3
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Resolution

1920*1080@60Hz

Connector HDMI
Impedance 100Ω
Audio Interface 3.5mm earphone seat
Signal type Stereo
K/M Interface

To PC: MINI-USB

To keyboard and mouse: USB-A

GPIO Interface Industrial terminal
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max:115200bps
Data bits 8
Optical fiber Interface LC connector
Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 3Gbps
Transmission distance standard 20km
Other Power supply The power adapter: DC 12V/1A
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension (LxWxH) 168*115*28mm
The warranty 1-year warranty

Overview

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function.

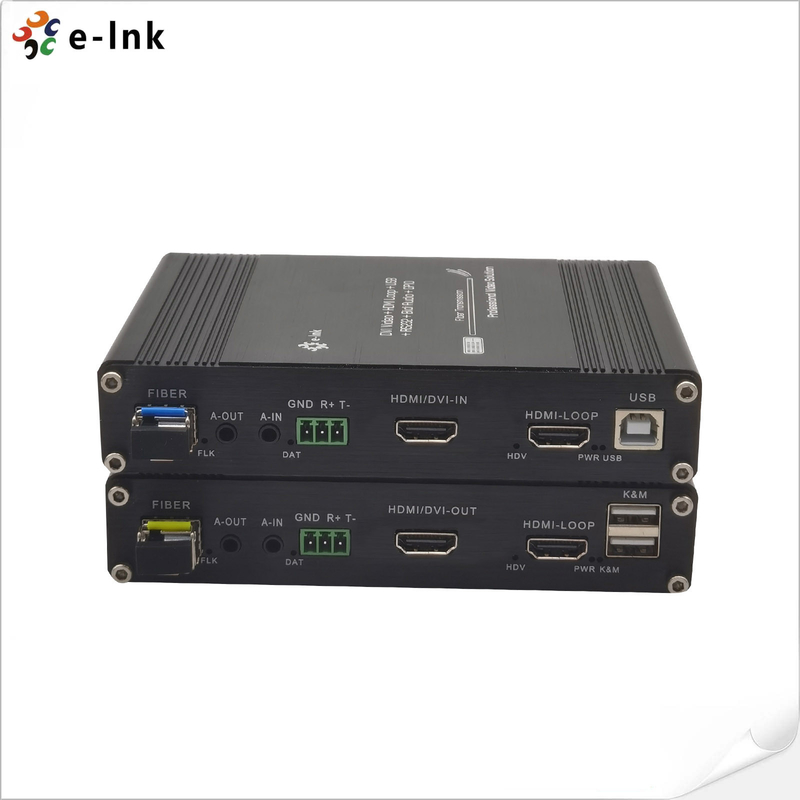

1080P HDMI Video Fiber Extender for with KVM RS232 Audio 0

1080P HDMI Video Fiber Extender for with KVM RS232 Audio 1

Order Information

Model Description
LNK-KVM-HDMI-1D1BA1GO 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
