Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-HF100DA
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
HDMI Fiber Optic Extender |
Interface: |
SFP Model LC Connector |
Interface Bandwidth: |
3Gbps |
Baud Rate: |
115200M |
Wavelength: |
850nm/1310nm/1550nm |
Dimension: |
92 X 57 X 23 (mm) |
Keyword: |
HDMI Fiber Optic Extender |
Interface: |
SFP Model LC Connector |
Interface Bandwidth: |
3Gbps |
Baud Rate: |
115200M |
Wavelength: |
850nm/1310nm/1550nm |
Dimension: |
92 X 57 X 23 (mm) |

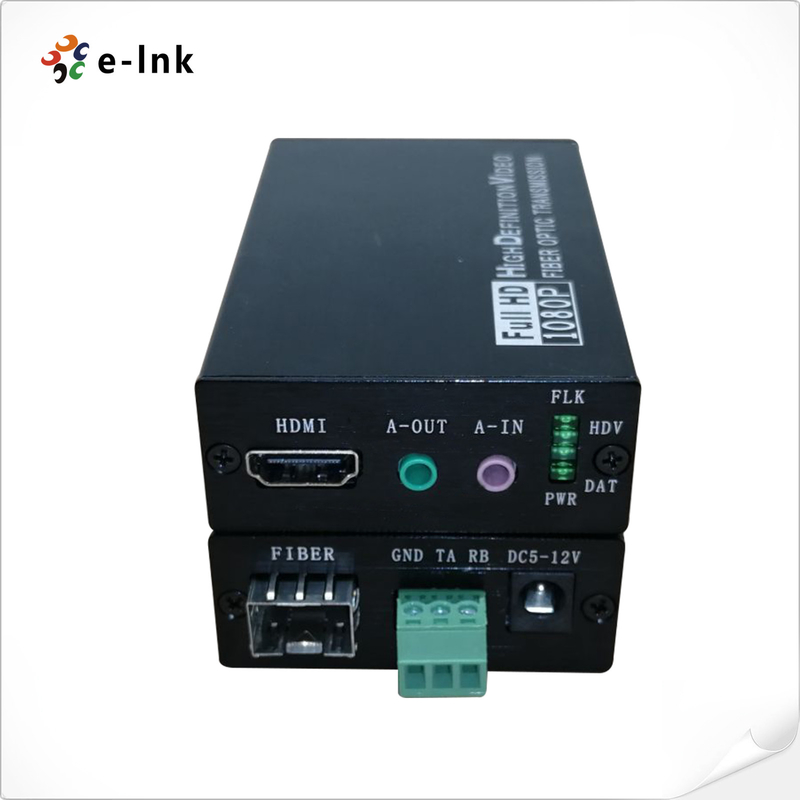

HDMI Fiber Extender Bidirectional Stereo Audio RS232 HDMI Over Fiber Converter
HDMI Over Fiber Converter Advantages
► Transmits HDMI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard
Technical Indexes
|
Video |
Maximum data rate |
6.75Gbps |
|
Compliant |
Special support 1600*1200 @60HZ |
|
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Ouptut | |
| Receiver | 1Ch Input + 1Ch Ouptut | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 | |
| Data Bits | 8 bits | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
Overview
The LNK-HF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232 over one fiber optic cable, it supports HDMI1.4 and MHL2.1 dual mode, it is fully compatible with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
|
Model |
Description |
|
LNK-HF100DA |
1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multi mode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HF100DA-20 |
1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
