Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-IPMU_8UL_ ZK_UL
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD65/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Working Power: |
85V~265VAC |
Working Frequency: |
50Hz |
Communication Port: |
RS485 Port, Modbus RTU Communication Protocol |
Alarm Function 1: |
Under-voltage, Over-voltage, Over-current, Power Out-of-limit Alarms |
Alarm Function 2: |
Temperature And Humidity Alarm |
Alarm Function 3: |
Access Control 1, Access Control 2, Smoke Detection And Flood Alarms. |
Alarm Function 4: |
Lightning Protection Failure Detection And Lightning Protection Count |
Length: |
PDU Length Including Mounting Brackets 482.6mm |
Working Power: |
85V~265VAC |
Working Frequency: |
50Hz |
Communication Port: |
RS485 Port, Modbus RTU Communication Protocol |
Alarm Function 1: |
Under-voltage, Over-voltage, Over-current, Power Out-of-limit Alarms |
Alarm Function 2: |
Temperature And Humidity Alarm |
Alarm Function 3: |
Access Control 1, Access Control 2, Smoke Detection And Flood Alarms. |
Alarm Function 4: |
Lightning Protection Failure Detection And Lightning Protection Count |
Length: |
PDU Length Including Mounting Brackets 482.6mm |

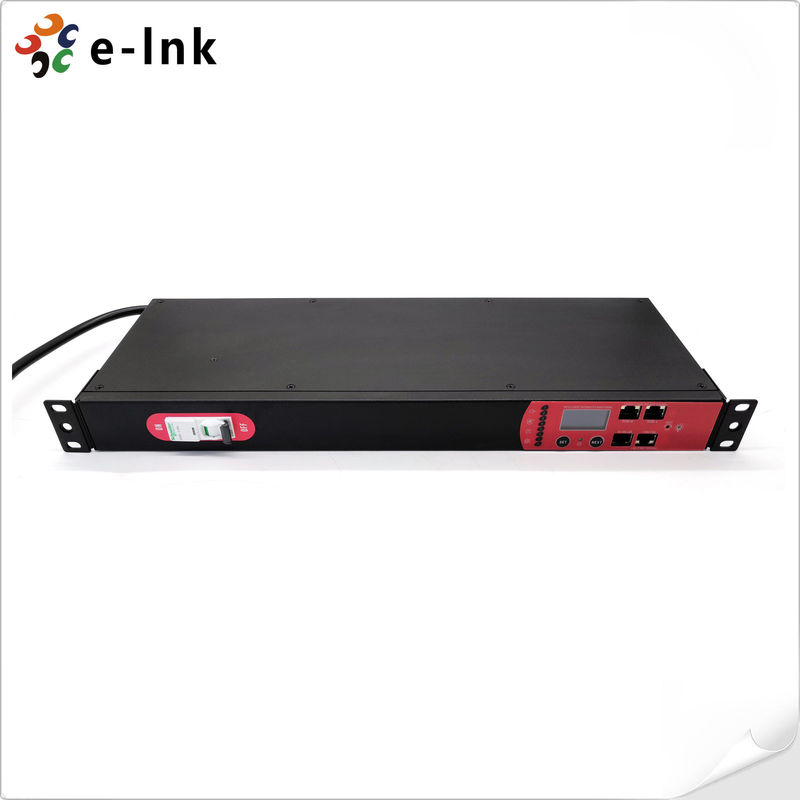

Accessories 19'' 1U Surge protection PDU with Power Meter 8 Port US standard
Accessories Advantages:
Use imported 32-bit ARM microprocessor (CPU) control and software programming technology for advanced embedded operating system;
Use 85 ~ 265Vac global applicable working power technology, achieved level 5 energy efficiency management, the output uses expensive
solid capacitors to provide stable operating
Provides two kinds of communication ports: Ethernet uplink communication port (optional for uplink and downlink) and isolated
RS485 communication port. It adopts standard MODBUS-RTU specification protocol to facilitate user networking;
Use 1.3-inch OLED screen with clear display;
Built-in alarm buzzer;
Technical Indexes
| Item | Parameter Requirements | Remark |
| Working Power | 85V~265VAC | |
| Working Frequency | 50Hz | |
| Electricity Measurement | Accuracy:Grade 1 | Active measurement |
| Display Digits:0.001kWh | ||
| Temperature and Humidity Measurement |
Temperature:0.01℃ Humidity:0.01%RH |
Optional: But with sensors |
| Communication Port | RS485 port, Modbus RTU Communication Protocol | Optional: uplink / downlink |
| Display | OLED Screen, Blue text on black / White text on black | Optional |
| Alarm Function 1 | Under-voltage, over-voltage, over-current, power out-of-limit alarms | Optional |
| Alarm Function 2 | Temperature and humidity alarm | Optional: But with sensors |
| Alarm Function 3 | Access control 1, access control 2, smoke detection and flood alarms. | Optional: But with sensors |
| Alarm Function 4 | Lightning protection failure detection and lightning protection count | Optional, but with a lightning protection module |
| Photosensitive Detection | Normally used for automatic lighting with extended functions | Optional, but with an interface expansion module |
Overview
E-link's IMPU series Metered Switched PDU with automatic transfer switching is the perfect solution for critical network installations
that require remote power control and power supply redundancy on 85-265 AC equipment. E-link 's IMPU series metered PDUs
help you keep track of conditions at your data center, and can automatically notify you before things get out of hand. The PDU
also allows you to automatically reboot outlets when attached devices cease to respond, disable outlets to reduce current
consumption or switch on cooling devices to lower rack temperatures.
Ordering Information
| Model Number | Installation |
Input Connction |
Input control | Output control | Output Interface | accessories |
| LNK- IMPU_8GB10_ZK_GB | Horizontal | Power Cable 1.8m | Micro Circuit Breaker 1P,16A | GB2015,Max=13A,8CH Control output | GB1002(10A/250V) | Smart Meter |
| LNK- IPMU_8IEC13K_ZK_IEC14 |
Horizontal |
Power Cable 1.8m | Micro Circuit Breaker 1P,16A | IEC320-C13(Cable anti falling),Max=13A,8CH Control output | IEC60320 C13 | Smart Meter |
| LNK-IPMU_8UL_ ZK_UL |
Horizontal |
Power Cable 1.8m | Micro Circuit Breaker 1P,16A | NEMA5-15R Max=16A,8CH Control output | (16A/250V) | Smart Meter |
