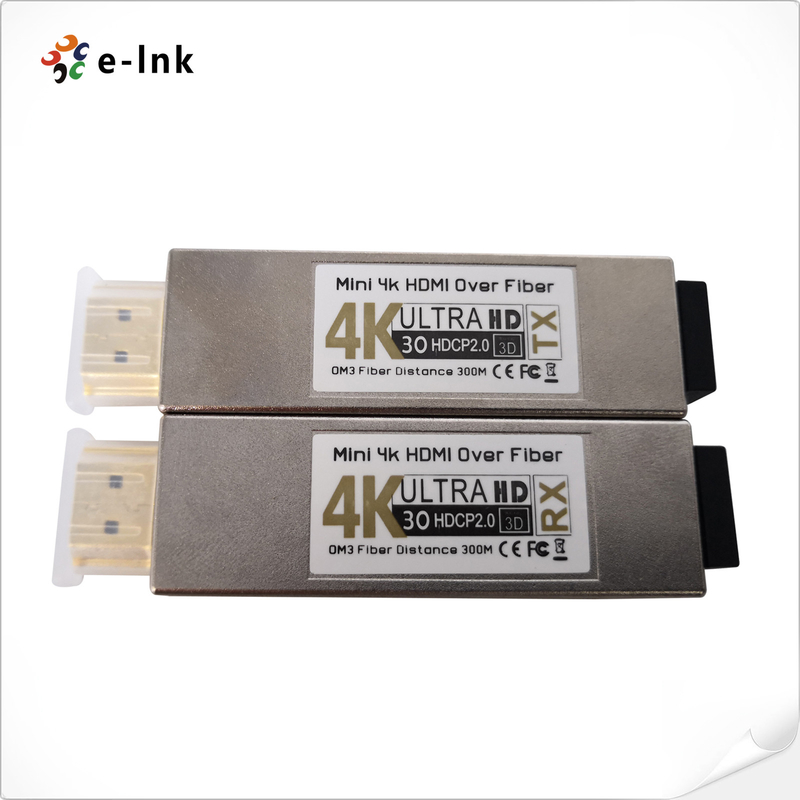

Mini 4K HDMI Optical Transceiver

Product Details

Place of Origin: China

Brand Name: E-link

Certification: Iso9001, CE, ROHS, FCC

Model Number: LNK-106M

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: HDMI Optical Transceiver Standard Package

Delivery Time: 1-3 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 1000pair/Month

Get Best Price
Contact Now
Specifications
Highlight:

2 Port PoE adapter 12v

,

Hardened PoE adapter 12v

,

hardened poe injector 802.3at

Type Of Extender:
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable
Input Signals:
HDMI
Dynamic EDID:
Plug & Play, No Need To Learn
Fiber Connector:
Double LC Receptacle
Storage Temperature:
-20°C To + 85°C
Dimension (WxDxH):
3.15 X 0.79 X 0.35 In (80x20x9mm)
Type Of Extender:
Fiber Transmitter For HDMI Signal Over Optical Fiber Cable
Input Signals:
HDMI
Dynamic EDID:
Plug & Play, No Need To Learn
Fiber Connector:
Double LC Receptacle
Storage Temperature:
-20°C To + 85°C
Dimension (WxDxH):
3.15 X 0.79 X 0.35 In (80x20x9mm)
Description
Mini 4K HDMI Optical Transceiver

Mini 4K HDMI Optical Transceiver



Model:LNK-106M



Overview

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of

an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m,

at a resolution of 4Kx2K. 4 K HDMI

OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission

over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal.

The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal

for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of

anti-interference, to ensure the stability of the signal.

Features

Ø HDMI 1.4a and HCCP1.2 Support

Ø Uncompressed transmission,No delay,No losses

Ø DDC CEC HPD Signal Support

Ø Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)

Ø Supports All Modes up to 4K*2K@30Hz Resolution

Ø Standard HDMI Connector

Ø Integrated USB Connector for Power

Ø Hot-Pluggable, EMI/RFI Resistant

Ø Miniature form factor for ease of use and installation

Ø 850nm VCSEL and PIN Photodetector

Ø Video over (2) multimode fibers

Ø Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)

Ø Operating Case Temperature: 0~70°C

Technical Indexes

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Signal Support HDMI 1.4a HDMI format standard and HDCP compliant
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications Color space 444, 420, 400
Dynamic EDID Plug & Play, no need to learn
Fiber Connector Double LC Receptacle
Transmission Distance Multi Mode, up to 984ft (300M)
Operating Temperature 0°C to + 50°C
Storage Temperature -20°C to + 85°C
Humidity to 90% RH (non-condensing)
Safety Approvals CE, RoHS
Dimension (WxDxH) 3.15 x 0.79 x 0.35 in (80x20x9mm)
Weight 0.1 kg / 0.22 lb
Operation Voltage 5VDC
Power Supply Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)

Application

Mini 4K HDMI Optical Transceiver 0

Ordering Information

Item Description
LNK-106M Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input
