Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-MHF100
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: To be negotiated
Packaging Details: HDMI Fiber Extender Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500 Pair/month
Keyword: |
HDMI Fiber Extender |
Video Standard: |
HDMI1.4B 3D; HDCP1.4 |
Maximum Data Rate: |
6.75Gbps |
Optical Fiber Interface: |
SFP Model – LC Connector |
Bandwidth: |
3Gbps |
Dimension: |
80 X 40 X 20 (mm) |
Keyword: |
HDMI Fiber Extender |
Video Standard: |
HDMI1.4B 3D; HDCP1.4 |
Maximum Data Rate: |
6.75Gbps |
Optical Fiber Interface: |
SFP Model – LC Connector |
Bandwidth: |
3Gbps |
Dimension: |
80 X 40 X 20 (mm) |

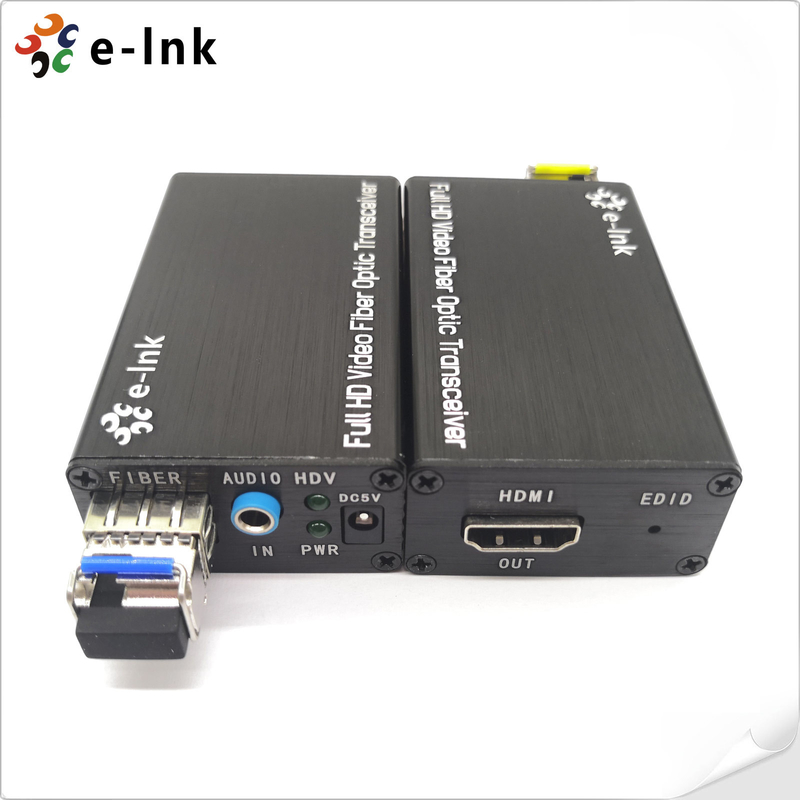

HDMI Fiber Extender HDMI Fiber Optic Extender With External Stereo Audio
HDMI Fiber Extender Advantages
► Transmits HDMI video signals and audio up to 20km over a single fiber optic cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;
► Single-port MHL2.1/HDMI 1.4b receiver
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
► Support EDID
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI1.4B 3D; HDCP1.4 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| HDMI Cable Range | <5Meter (Resolution up to 1920*1200@60Hz) | |
| Audio | Interface | 3.5MM external stereo audio |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Multimode or Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Interface bandwidth | 3Gbps | |
| Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <300m Single-mode fiber: 20km |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 1.2W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension (LxWxH) | 80 x 40 x 20 (mm) | |
Overview
The LNK-MHF100 Series Mini-type HDMI Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports HDMI1.4 and MHL2.1 dual mode, it is fully compatible with MHL2.1, HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Infromation
| Model | Description |
| LNK-MHF100 | HDMI Fiber Optic Extender with external stereo audio: 1920*1200P@60Hz, Compliance with HDMI 1.4B 3D & HDCP1.4 standard, LC(SFP), OM3 Multimode dual fiber, 300m, Support EDID, including 1 transmitter & 1 receiver, used by pairs |
| LNK-MHF100S | HDMI Fiber Optic Extender with external stereo audio: 1920*1200P@60Hz, Compliance with HDMI 1.4B 3D & HDCP1.4 standard, LC(SFP), single mode, single fiber, 20km, Support EDID, including 1 transmitter & 1 receiver, used by pairs |
| LNK-MHF100S-40 | HDMI Fiber Optic Extender with external stereo audio: 1920*1200P@60Hz, Compliance with HDMI 1.4B 3D & HDCP1.4 standard, LC(SFP), single mode, single fiber, 40km, Support EDID, including 1 transmitter & 1 receiver, used by pairs |
