Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-PH04-E
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD240/PCS
Packaging Details: Ethernet Fiber Optic Telephone Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Wavelength: |
850, 1310 Or 1550nm Optional |
Mean Transmit Power: |
≥-25dBm(multimode, 1310nm) |
Receiver Sensitivity: |
≤-36dBm |
Connector Type: |
FC/SC Optional; Single Mode/multimode Optional; Single-strand/dual-strand Optional. |
Ethernet Interface Rate: |
10M/100M Adaptive |
Voice Encoding: |
PCM Encoding, 64Kbps Per Line |
Wavelength: |
850, 1310 Or 1550nm Optional |
Mean Transmit Power: |
≥-25dBm(multimode, 1310nm) |
Receiver Sensitivity: |
≤-36dBm |
Connector Type: |
FC/SC Optional; Single Mode/multimode Optional; Single-strand/dual-strand Optional. |
Ethernet Interface Rate: |
10M/100M Adaptive |
Voice Encoding: |
PCM Encoding, 64Kbps Per Line |

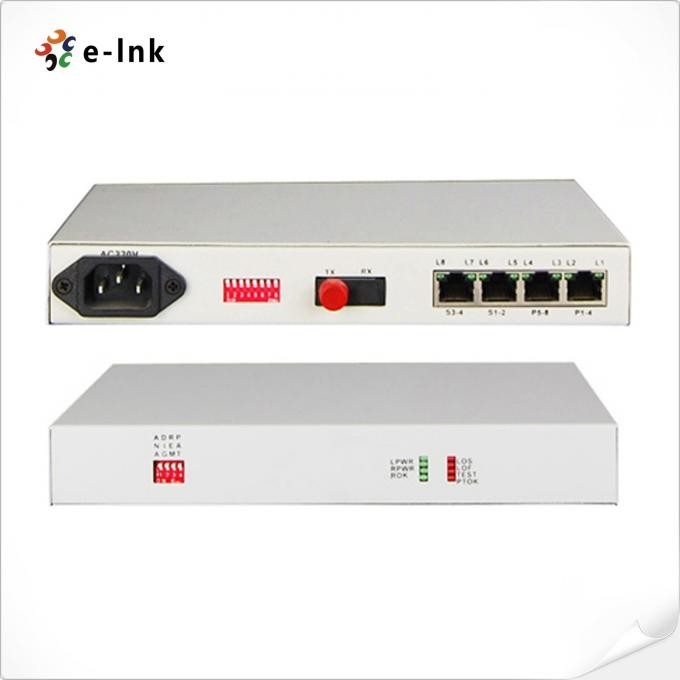

4-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC
Ethernet Fiber Optic Telephone Advantages:
1~4Channel voice, 1~8Channel switch or two/four line audio and so on
Ethernet interface supports 10M/100M, half/full duplex auto- adaptable and VLAN
The transmission distance is up to 2-120Km without interruption
Technical Indexes
Parameter | Specifications |
Optical Interface |
Wavelength: 850, 1310 or 1550nm optional Mean Transmit Power: ≥-8dBm(single mode, 1310nm) ≥-18dBm(multimode, 850nm) ≥-25dBm(multimode, 1310nm) Receiver Sensitivity: ≤-36dBm Connector Type: FC/SC optional; single mode/multimode optional; single-strand/dual-strand optional. |
Ethernet Interface |
Ethernet Interface Rate: 10M/100M adaptive, 10M half-duplex, 10M full-duplex, 100 M half-duplex or 100M full-duplex optional Compatible Protocol: IEEE802.3 Transmission Rate: 100M |
FXO (FXS) Telephone Interface |
Relay Interface (FXO): Connected to switch User Interface (FXS): connect users’ telephone |
Application
LNK-PH04-E is a new generation 4-Ch Telephone Fiber Mux. It can provide a 4-line voice interface and 1-line 10/100M
Ethernet Interface directly upon the optical transmission.
Ordering Information
Model | Description |
LNK-PH04-E | 4-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode, Single Fiber (One Core), 20KM, AC 220V |
