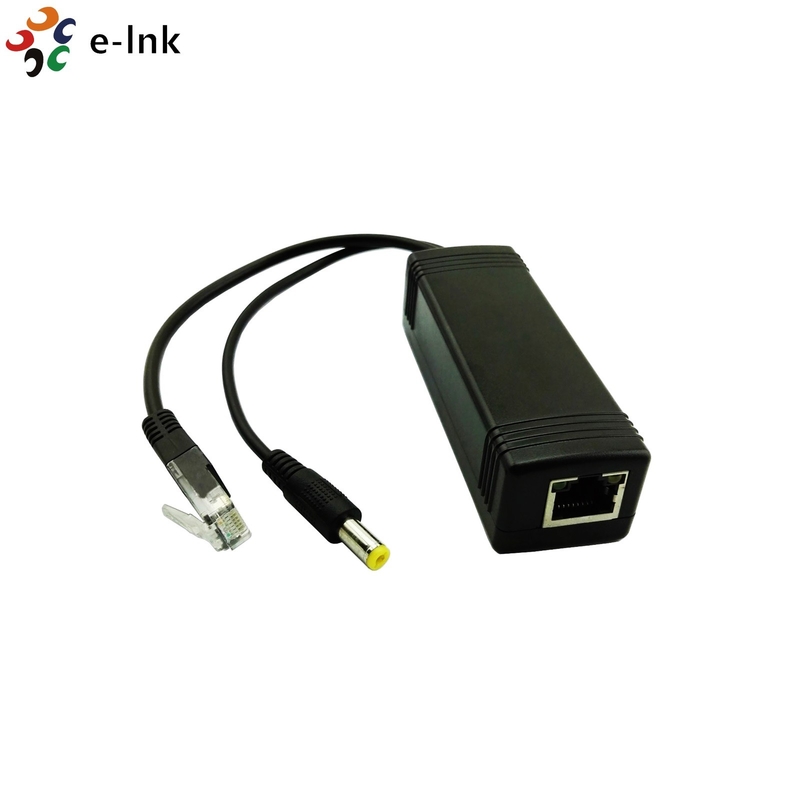

PoE Power Splitter 10/100/1000M 5V 3A PoE Splitter Ethernet Connectors

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-SP15WG

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiation

Packaging Details: PoE Power Splitter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

5V PoE Power Splitter

,

1000M PoE Power Splitter

,

poe splitter 5v

Keyword:
Passive Poe Gigabit Splitter
Power Input:
DC38~56V
Stable:
AKros AS1138
Color:
Black
Product Size:
250mm*28mm*24mm
Weigh:
0.2kg
Keyword:
Passive Poe Gigabit Splitter
Power Input:
DC38~56V
Stable:
AKros AS1138
Color:
Black
Product Size:
250mm*28mm*24mm
Weigh:
0.2kg
Description
PoE Power Splitter 10/100/1000M 5V 3A PoE Splitter Ethernet Connectors

PoE Power Splitter 10/100/1000M 5V 3A PoE Splitter Ethernet Connectors
PoE Power Splitter Advantages
► 52V: MAX transmission 150M (With full copper low resistance network lines)
► Comply to IEEE802.3af/at
► Built-in high performance chip and high specification circuit board
► RJ45 full shield port

Technical Indexes

Model

LNK-SP15WG

DC out

5V 3A

Power

15W

distance

10BASE-T: cat 5 UTP(≤100m)
100BASE-TX: cat 5 and above UTP(≤100m)
1000BASE-TX: cat 5 and above UTP(≤100m)

Port

1 GE(10/100/1000M) POE input+1 Network+1 DC output

POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,
IEEE802.1af DTE Power via MDI

Network
protocol

IEEE 802.3i 10BASET;
IEEE 802.3u 100BASETX;
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°~55°C
Storage temperature:-40°~85°C
Working Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~90% RH non-condensing

Overview
LNK-SP15WG PoE splitter, Develop used for Ethernet power supply application scenarios, device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 5V 3A; The POE signal can be separated into network signal and electric power. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
PoE Power Splitter 10/100/1000M 5V 3A PoE Splitter Ethernet Connectors 0
Ordering information

Model

Description

LNK-SP15WG

PoE Splitter: 1x10/100/1000M POE input + 1xNetwork +1xDC output, MAX 15 watts, DC output 5V 3A
