Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-M3011-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Adaptive Gigabit Media Fiber Converter |
Fiber Port: |
SFP 100/1000M Adaptive |
Wavelength: |
850nm/1310nm/1550nm |
Weight: |
46g |
Dimensions: |
78 X 27 X 18 Mm |
Operating Temperature: |
0~45ºC |
Keyword: |
Adaptive Gigabit Media Fiber Converter |
Fiber Port: |
SFP 100/1000M Adaptive |
Wavelength: |
850nm/1310nm/1550nm |
Weight: |
46g |
Dimensions: |
78 X 27 X 18 Mm |
Operating Temperature: |
0~45ºC |

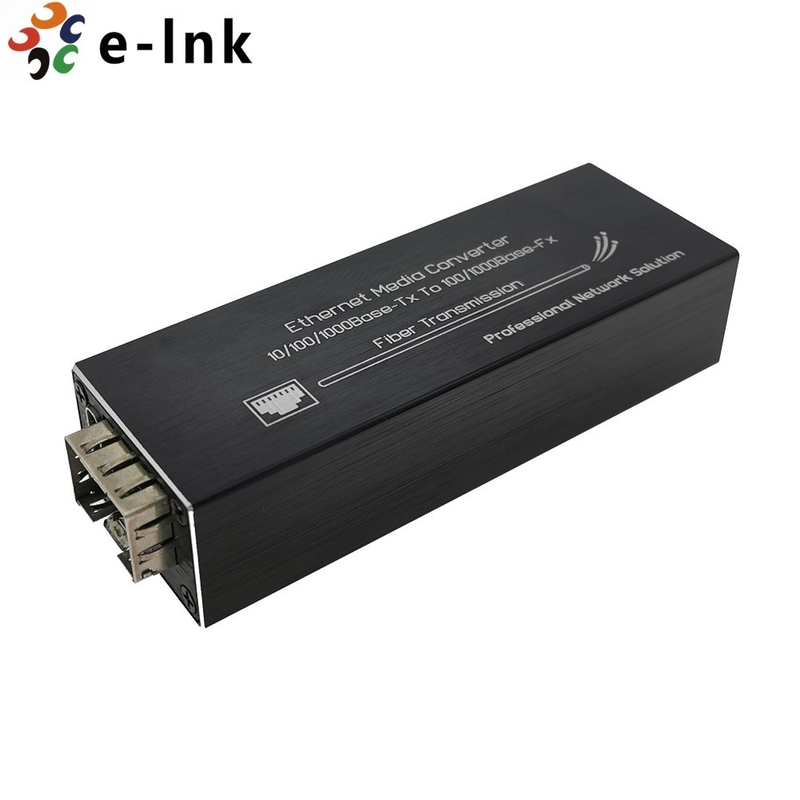

Fiber Media Converter Micro 10/100/1000Mbps Adaptive Gigabit SFP Media Converter
Adaptive Media Converter Advantages
► Support 9k jumbo frame
► Smallest media converters available; tuck the unobtrusively behind a PC
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► Ultra compact and weigh less than 2 ounces
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Technical Indexes
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
|
Power supply |
DC 5~15V (Type-C) |
|
Power consumption |
<3W |
Overview
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.
Ordering Information
|
Model |
Description |
|
LNK-M3011-SFP |
Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, standalone, external power adaptor |
