Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-POE1000SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Power Over Ethernet Media Converter |
Connector: |
1-port RJ45 1-port SFP |
Input Voltage: |
100 VAC To 240 VAC |
Protection: |
Short Circuit Over Current Auto Recovery |
Case Color: |
Black |
Cooling: |
Free Air Convection |
Keyword: |
Power Over Ethernet Media Converter |
Connector: |
1-port RJ45 1-port SFP |
Input Voltage: |
100 VAC To 240 VAC |
Protection: |
Short Circuit Over Current Auto Recovery |
Case Color: |
Black |
Cooling: |
Free Air Convection |

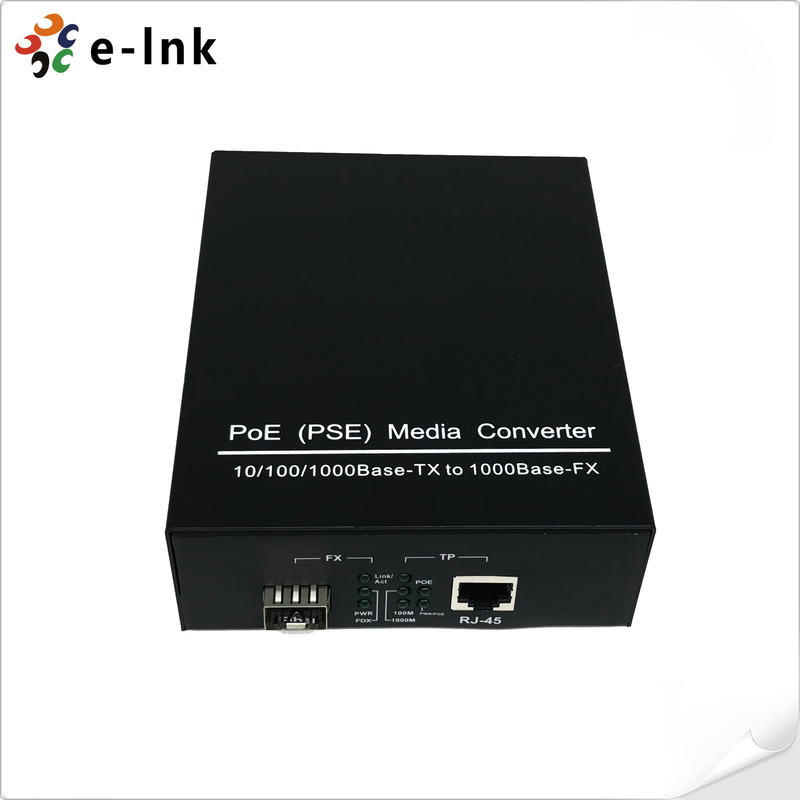

Fiber Media Converter 10/100/1000Base-TX To 1000Base-FX SFP 802.3Af/At PoE
PoE Media Converter Advantages
► 10/100/1000Base-TX UTP to 1000Base-X SFP fiber media conversion
► IEEE802.3at / IEEE802.3af PoE PSE compatible
► Built-in AC/DC power supply
► Supports external 1000Base-X SFP
Technical indexes
|
Data Rates |
10/100/1000Mbps(IEEE802.3U IEEE802.3z 1000Base-Tx) |
|
1000Mbps (1000Base-FX) or 100Mbps (100Base-FX) |
|
|
Input voltage |
100 VAC to 240 VAC |
|
Input frequency |
47 Hz to 63 Hz |
|
For IEEE802.3af standard |
1/2 (V+),3/6 (V-) |
|
For IEEE802.3at standard (30watts maximum) |
1/2 (V+),3/6 (V-) |
|
For IEEE802.3at standard (50watts maximum) |
1/2/4/5 (V+),3/6/7/8 (V-) |
|
Operating temperature |
0℃ to 50℃ |
|
Case Material |
Iron |
|
Case Color |
Black |
|
Net Weight |
560g approx. / unit |
|
Dimensions |
110(W) x 40(H) x 140(L) (mm) |
Overview
LNK-POE1000SFP series is a 10/100/1000Base-TX to 1000Base-X SFP (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3at or IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feets).
Ordering Information
|
Model |
Description |
|
LNK-POE1000SFP |
PoE Media Converter: 1xRJ45, 1xSFP, not including SFP module, 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX with DIP Switch), IEEE 802.3af, POE power: 15.4W, 0°C~+70°C, Built-in Power Supply |
|
LNK-POE1000TSFP |
PoE Media Converter: 1xRJ45, 1xSFP, not including SFP module, 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX with DIP Switch), IEEE 802.3at, POE power: 30W, 0°C~+70°C, Built-in Power Supply |
