Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-SPL01
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD79/PCS
Packaging Details: Industrial IEEE802.3af/at PoE Splitter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
“PoE (Power + Data)” Input Port:: |
1 X RJ-45 10/100/1000Base-T |
“Data” Out Port:: |
2 X RJ-45 10/100/1000Base-T |
Number Of Devices That Can Be Powered:: |
1 (DC12V) (Vary On Device’s Power Requirement; Cannot Be Over 20 Watts.) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |
“PoE (Power + Data)” Input Port:: |
1 X RJ-45 10/100/1000Base-T |
“Data” Out Port:: |
2 X RJ-45 10/100/1000Base-T |
Number Of Devices That Can Be Powered:: |
1 (DC12V) (Vary On Device’s Power Requirement; Cannot Be Over 20 Watts.) |
Casing: |
Aluminum |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Warranty: |
5 Years |
Weight: |
0.25Kg |

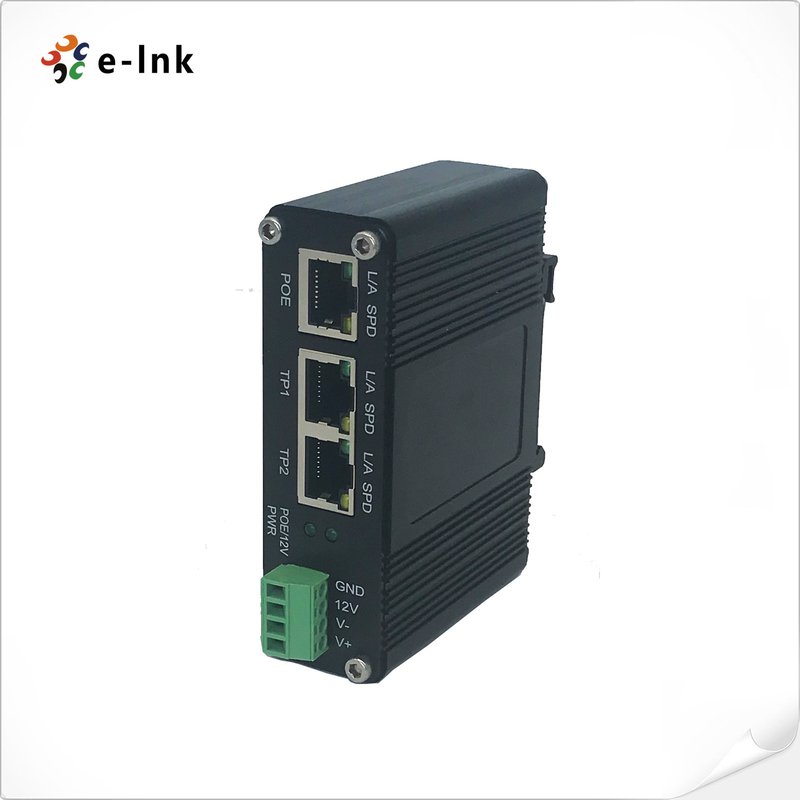

Industrial IEEE802.3af/At PoE Splitter With 2-Port Switch Function
Industrial IEEE802.3af/at PoE Splitter Advantages:
Splits power and data from PoE Input
1-port PoE Power+ Data input
2-port Data output (Switch function)
1 DC Out + 1 DC In (5-pin Terminal Block)
Able to work with 12VDC input no PoE
Support IEEE802.3af/at PoE
Support 10/100/1000Base-TX
Distance up to 100 meters
Supports output power up to 20W
12VDC output voltage
Short-circuit protection for power output
IP40 rugged metal housing and fanless
Support DIN-Rail & Wall-mount installation.
Extensive LED indicators for PoE diagnostics
Wide operating temperature -40 ~ 80°C
Industrial IEEE802.3af/at PoE Splitter Specifications
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 2 x RJ-45 10/100/1000Base-T | |
| DC Out/In Plug Connector: 1 removable 5-Pin terminal block | |
| Power over Ethernet | |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: |
1 (DC12V) (Vary on device’s power requirement; cannot be over 20 watts.) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Power Output: | 20W 12VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
LNK-SPL01 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector,
and electrical power, via screw terminal block, to non-PoE devices.
This device saves the high cost of running separate electrical service to edge devices.
With 2-port RJ45 data output, LNK-SPL01 can be function as switch. With dual power input (PoE input + 12VDC input),
the PoE splitter can work when there is no PoE input, that is to say, LNK-SPL01 can automatically recognize
the power input (default in PoE input, switch to 12VDC input when PoE not work).
Ordering Information
| Model | Description |
|
LNK-SPL01 |
Industrial PoE splitter with 2-port Switch function: 1-port PoE+ In + 2-port Ethernet Data Out (switch function), maximum output of 20 W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 20W 12VDC output with 2-pin open wire terminal block |
