Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-GYM9206GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD199/PCS
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
RJ45 Port And Speed: |
4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T |
Fiber Port And Speed: |
2 X 100/1000Base-X SFP (Dual Mode, Auto Detection) |
PoE Standard: |
4x IEEE 802.3af/at/bt PoE |
Power Budget: |
Max. PoE Output Power Budget 95W For Each PoE Port |
Redundant Power Input: |
DC 48-57V |
Operating Temperature: |
-40℃~80℃ |
RJ45 Port And Speed: |
4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T |
Fiber Port And Speed: |
2 X 100/1000Base-X SFP (Dual Mode, Auto Detection) |
PoE Standard: |
4x IEEE 802.3af/at/bt PoE |
Power Budget: |
Max. PoE Output Power Budget 95W For Each PoE Port |
Redundant Power Input: |
DC 48-57V |
Operating Temperature: |
-40℃~80℃ |

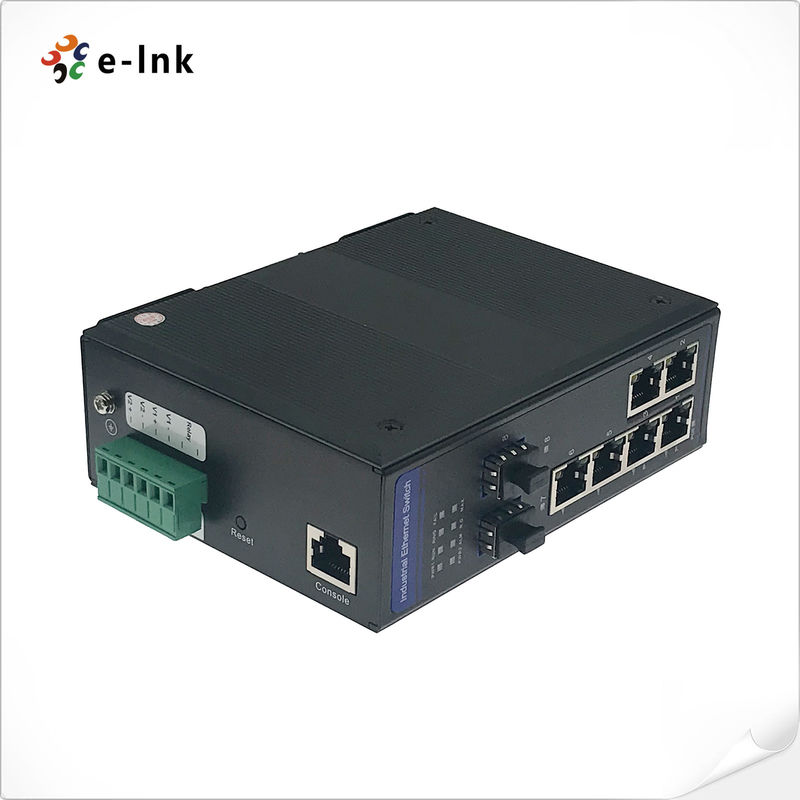

Industrial 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
Industrial PoE Switch Advantages:
100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
Supports PoE power up to 95 watts for each PoE port, total PoE Power Budget up to 360 watts maximum
Support 16K bytes giant frame, compatible with various extension protocol
Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
IPv6 Protocol, Electric 4KV surge protection
Complete status indicator, working state at a glance
Power input polarity protection design, no worry about wrong operation
Metal case, no fan design
Installation method: DIN trail /Wall mounting
DHCP RFC 1541, 1542
Technical Indexes
| Physical Port | |
| RJ45 port and speed | 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T |
| Fiber port and speed | 2 x 100/1000Base-X SFP (Dual Mode, Auto Detection) |
| Software | |
| Software Features | Redundant network: STP/RSTP |
| Multicast: IGMP Snooping V1/V2 | |
| VLAN: IEEE 802.1Q 4K VLAN, QINQ | |
| Link Aggregation: manual | |
| Management Function: CLI/WEB/SNMP | |
| Diagnostic Maintenance: Port mirroring, Ping | |
| Alarm management: 1 way relay alarm output, RMON, SNMP Trap | |
| Security: DHCP Snooping, User hierarchical management | |
| Data control Port-based ingress/egress speed limit, Full duplex IEEE 802.3x, half duplex back-pressure flow control. Broadcast storm suppression, Unknown-Multicast suppression and Unknown-Unicast suppression |
|
| PoE | |
| PoE Standard | 4x IEEE 802.3af/at/bt PoE |
| Power budget | Max. PoE output power budget 95W for each PoE port Total PoE Power Budget up to 360 watts maximum |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 48-57V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Installation mode | DIN trail/wall-mountable |
| Weight | 600g |
Overview
LNK-GYM9206GP-SFP Series is a new generation industrial Managed switch with Industrial 4-Port 10/100/1000T 802.3bt
PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP that provide stable and reliable Ethernet transmission offered by E-link,
with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize
Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable
fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size,
no fan, low power consumption, high reliability and stability, and easy to maintain.
Ordering Information
| Model | Description |
| LNK-GYM9206GP-SFP | Industrial 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
