Industrial Outdoor 4 port Industrial POE Extender PoE Repeater 100 meter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IPE104-30

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

100m Industrial POE Extender

,

IP40 Industrial POE Extender

,

DIN Rail Outdoor PoE Extender

POE Standard:
IEEE 802.3af /IEEE 802.3at
Transmission Distance:
100m
Protection Level:
IP 40
Dimensions:
95 X 70 X 30 Mm
Weight:
0.25Kg
Installation:
DIN Rail/Wall-mount
POE Standard:
IEEE 802.3af /IEEE 802.3at
Transmission Distance:
100m
Protection Level:
IP 40
Dimensions:
95 X 70 X 30 Mm
Weight:
0.25Kg
Installation:
DIN Rail/Wall-mount
Description
Industrial Outdoor 4 port Industrial POE Extender PoE Repeater 100 meter

1 x PoE/PD Port + 4 x PoE/PSE Ports Industrial Outdoor PoE Repeater 4 Ports PoE Extender

Industrial POE Extender Advantages

  • 10/100/1000Mbps Ethernet Ports
  • 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
  • IP40-rated aluminum case
  • Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment
  • Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

Specifications

Ethernet Port
PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3at PoE Input

Input Power 50~57V DC, Max 30W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output

Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m

Power over Ethernet
PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE Power Supply Type Mid-span and End-span
PoE Pin Assignment 4/5(+), 7/8(-)
Protection Level IP 40
Operating Temperature -40°C to 80°C (-40°F to 176°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH) 95 x 70 x 30 mm
Weight 0.25Kg
Casing Aluminum Case
Mounting Options DIN-Rail / Wall-mount

Overview



LNK-IPE104-30 is an industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application.

The LNK-IPE104-30 can obtain a maximum of 30-watt PoE power from 802.3at PoE+ input port and supplies a maximum of 25-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time.

The LNK-IPE104-30 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

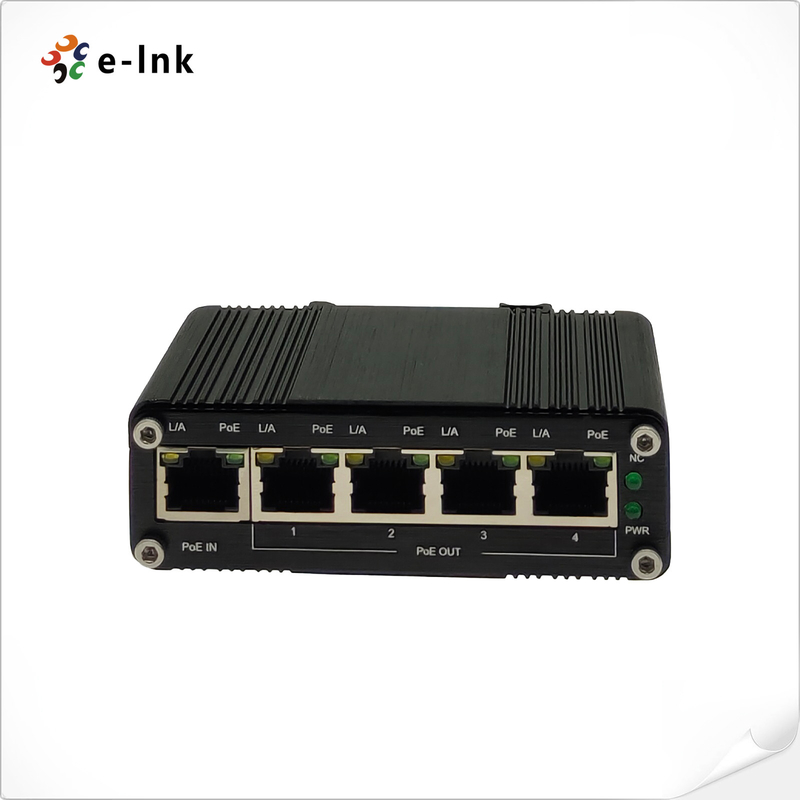

Industrial Outdoor 4 port Industrial POE Extender PoE Repeater 100 meter 0

Industrial Outdoor 4 port Industrial POE Extender PoE Repeater 100 meter 1

Order Information

Model Description
LNK-IPE104-30 Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
