Model Number: LNK-AA18M2-30
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD60/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
10Gb/s Active Optical Cable: |
Up To 100m MMF |
VCSEL And PIN Receiver: |
850nm |
Power Supply: |
Single 3.3V |
Operating Temperature: |
-5~75℃ |
Standard: |
SFF-8431 And SFF-8432 |
Application: |
10G Ethernet |
10Gb/s Active Optical Cable: |
Up To 100m MMF |
VCSEL And PIN Receiver: |
850nm |
Power Supply: |
Single 3.3V |
Operating Temperature: |
-5~75℃ |
Standard: |
SFF-8431 And SFF-8432 |
Application: |
10G Ethernet |

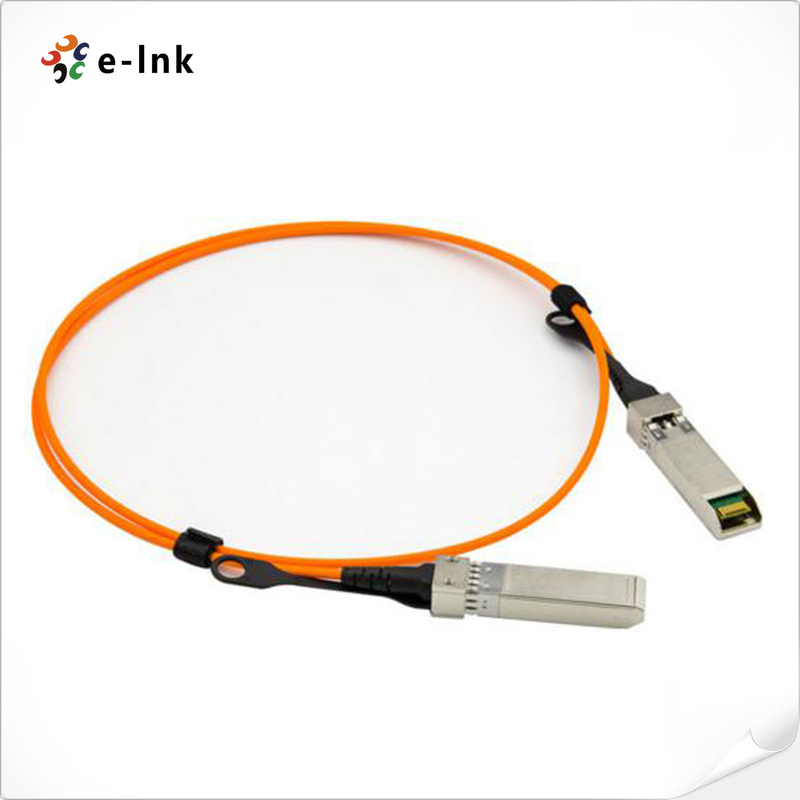

Accessories 10G SFP+ to SFP+ Active Optical Cable,OM2 Cable, Length 30m
Accessories Active Optical Cable Advantages:
10Gb/s active optical cable up to 100m MMF
850nm VCSEL and PIN receiver
Single 3.3V power supply
Operating Case Temperature: -5~75℃
Hot pluggable
Low Power Consumption
Light weight
Small Bend Radius
Digital Diagnostic Monitor(DDM)
All-metal Housing for Superior EMI Performance
Technical Indexes
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Average Output Power | Po | -5 | -1 | dBm | ||
| Disable Power | Poff | -40 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Output Centre Wavelength | λc | 840 | 860 | nm |
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Data Input Swing Differential | VIN | 200 | 700 | mV | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| Transmit Disable Input | High | VIH | 2.0 | Vcc+0.3 | V | |
| Low | VIL | 0 | 0.8 | V | ||
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Centre Wavelength | λc | 840 | 850 | 860 | nm | |
| Receiver Sensitivity | Sen | -11 | dBm | 1 | ||
| Receiver Overload | Psat | 0.5 | dBm | 1 | ||
| LOS De-Assert | LOSD | -15 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | 0.5 | 4 | dB | |||
| Receiver Reflectance | Rrx | -12 | dB |
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Data Output Swing Differential | Vout | 300 | 800 | mV | ||
| Rx-Los Fault | Vlf | 2.0 | VccHOST | V | ||
| Rx-Los Normal | Vln | 0 | 0+0.8 | V | ||
| Output rise and fall time | Tr, Tf | 28 | ps |
Overview
E-link’s LNK-AA18MX-XXX SFP+ Active Optical Cable (AOC) is a 10Gbps solution to 10G Ethernet, and data center.
The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m.
The AOC is SFP+ MSA compliance, low power consumption and lightweight.
