Multi-Channel Serial To Fiber Converter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IRS422-C02-FC

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Fiber Converter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 500 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Industrial rs422 to fiber optic converter

,

FCC rs422 to fiber optic converter

,

FC rs422 to fiber optic converter

Keyword:
Serial To Fiber Converter
RS-232 Signals:
TxD, RxD, GND
Physical Interface:
Industrial Standard Screw Terminal
Fiber Interface:
FC Port
Wavelength:
1310nm Dual Fiber
Baud Rate:
0~800kbps
Keyword:
Serial To Fiber Converter
RS-232 Signals:
TxD, RxD, GND
Physical Interface:
Industrial Standard Screw Terminal
Fiber Interface:
FC Port
Wavelength:
1310nm Dual Fiber
Baud Rate:
0~800kbps
Description

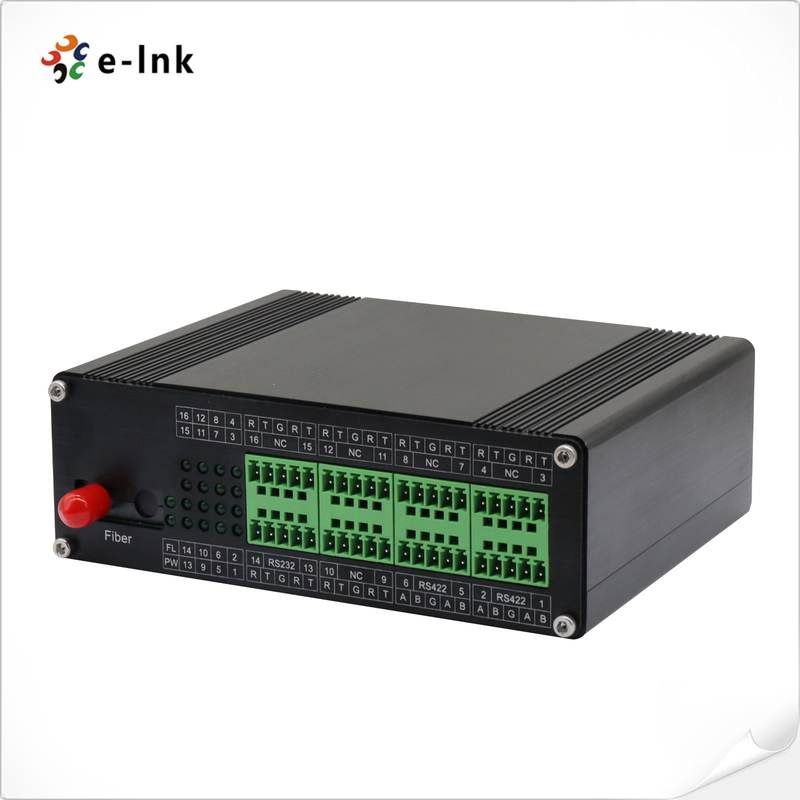

Multi-Channel Serial To Fiber Converter

Industrial 2 Channel RS422 Serial To Fiber Converter
Serial To Fiber Converter Advantages

► Supports Multi-Channel Serial Data Ports: 4~16Ch RS232, 4~16Ch RS485 or 2~8Ch RS422

► Serial data is fully transparent, baud rate is self-adaptive, no setting is required

► Supports SFP, FC, SC or ST Multi-mode 2Km, Single-mode 20Km

► The high-speed serial data can be used for DMX512 communication in Stage Lighting Control

Serial To Fiber Converter Technical Indexes

Fiber Optical Interface

Fiber interface

SFP, FC, SC or ST

Cable requirement

Multi-Mode: 50/125um, 62.5/125um

Single-Mode: 9/125um

Fiber port

1 Fiber Port

Transmission distance

Multi-Mode: 2km

Single-Mode: 20km

RS422 Serial Interface

Physical interface

Industrial standard screw terminal

Data type

Up to 2Ch RS422 Bi-Direction

RS-422 signals

Tx+, Tx-, Rx+, Rx-, GND

Serial port line distance (copper)

1000 meters

Baud Rate

0 ~ 800kbps

Power Requirements

Serial to Fiber Converter Overview

The use of optical fiber communication solves the problems of electromagnetic interference, ground ring interference and lightning damage. It greatly improves the reliability, security, and confidentiality of data communication

Multi-Channel Serial To Fiber Converter 0

Ordering Information

Part Number Description

LNK-IRS422-C02-FC



Industrial 2Ch RS-422 Serial to Fiber Converter, Multi-Mode, 1310nm, Dual Fiber, 2KM, FC, -40°C ~ 80°C



LNK-IRS422-C02-FC-20



Industrial 2Ch RS-422 Serial to Fiber Converter, Single-Mode, 1310nm, Dual Fiber, 20KM, FC, -40°C ~ 80°C
