Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IRS93-SC20
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Media Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Industrial Serial Fiber Converter |
Fiber Port: |
SC Connector |
Transmission Distance: |
20KM |
Surge Protection: |
1500W/sec |
Operation Temperature: |
-25°C To +75°C |
Casing: |
IP40 Aluminum Case |
Keyword: |
Industrial Serial Fiber Converter |
Fiber Port: |
SC Connector |
Transmission Distance: |
20KM |
Surge Protection: |
1500W/sec |
Operation Temperature: |
-25°C To +75°C |
Casing: |
IP40 Aluminum Case |

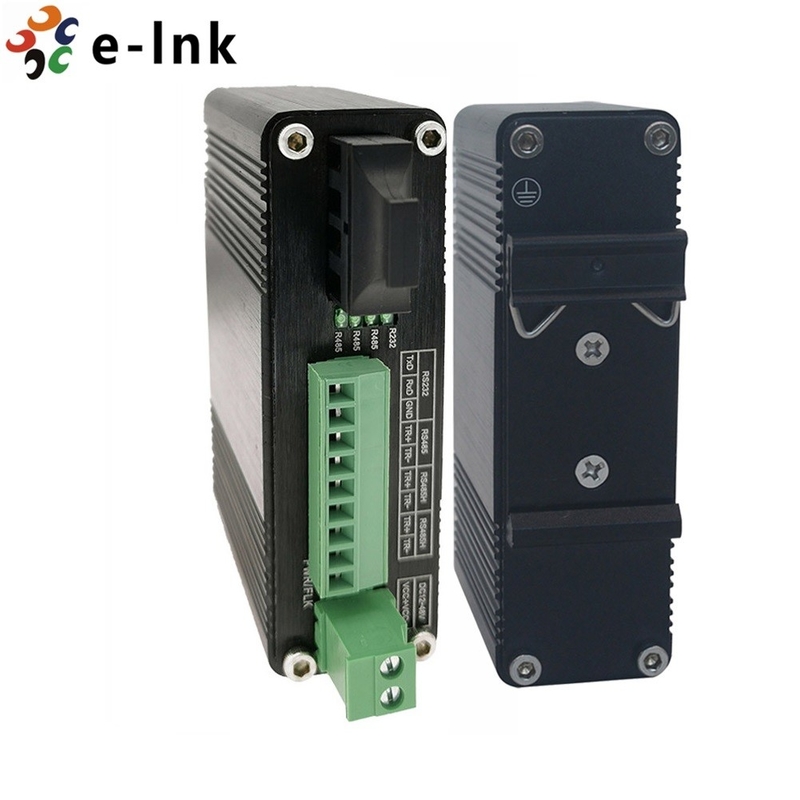

Industrial Serial RS232 RS485 RS422 Fiber SC Media Converter Modem Single Mode 20KM
Fiber Optical Modem Package Content
► LNK-IRS93 Series Fiber Optic Modem x 1
► Quick Start Guide x 1
► L-shaped wall mount bracket x 1
Industrial Media Converter Installation
SC/ST Fiber Optic Port Connection (SC default, ST optional)
The concept behind the SC/ST port and cable is straightforward. Suppose you are connecting devices I and II. Contrary to electrical signals, optical signals do not require a circuit in order to transmit data. Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used transmit data from device II to device I, for full-duplex transmission.
All you need to remember is to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. If you make your own cables, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2).
ATTENTION:
1.This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the laser beam.
2.The above text is for dual fiber port connection only; if for single fiber port connection, just using 1 fiber cable for connection, not need to tell Tx or Rx side.
RS232 RS422 RS485 Serial Media Converter Setup
a) Connect the RS232/422/485 port of the media converter to a serial device with a serial cable.
b) Connect the fiber cable from the device (media converter) on the other end to the SC/ST connector.
c) After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.
d) After all cables are correctly connected, the indicators will be lit as per port status LEDs
RS485 Data to Fiber Optic Converter Ordering Information
|
Model |
Description |
|
LNK-IRS93-SC20 |
Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20m |
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
