Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-GYT208GP-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Industrial Ethernet Switch 8-Port PoE |
PoE Protocol: |
IEEE802.3af/at Protocol |
Power Distance: |
250m 20W |
Ethernet Port: |
8-Port 10/100/1000BASE-TX RJ45 |
Fiber Port: |
2-Port 10/100/1000BASE-FX SFP |
Installation: |
DIN-Rail Or Wall Mounts |
Keyword: |
Industrial Ethernet Switch 8-Port PoE |
PoE Protocol: |
IEEE802.3af/at Protocol |
Power Distance: |
250m 20W |
Ethernet Port: |
8-Port 10/100/1000BASE-TX RJ45 |
Fiber Port: |
2-Port 10/100/1000BASE-FX SFP |
Installation: |
DIN-Rail Or Wall Mounts |

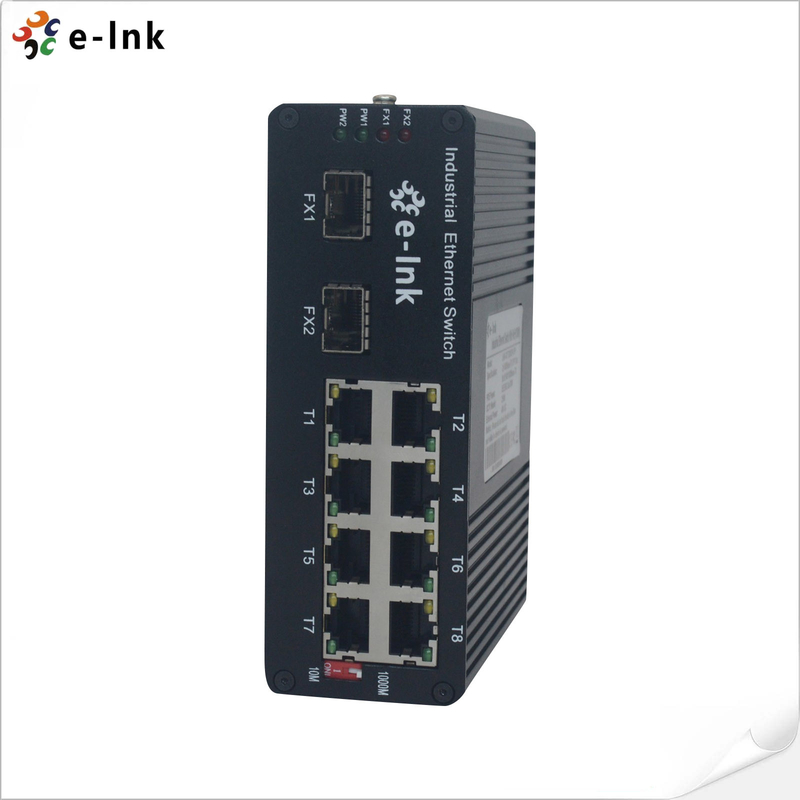

250m 20W 8 Port Industrial PoE Switch IEEE802.3af at protocol
Industrial 8-Port 10 100 1000BASE-T PoE To 2-Port 1000BASE-SFP Fiber 250m PoE Switch
8-Port 250m PoE Switch Advantages
►Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
►It will give the speed of 10Mbps at 250meter when connect IP cameras
►8 10/100/1000Base-TX + 2 1000Base-FX
►Supports IEEE 802.3at PoE+ (30W per port)
►9K Bytes Jumbo Frame
►Redundant Power Inputs
Unmanaged Network Switch Technical Indexes
|
Power |
Power Supply |
Industrial Power Adaptor |
|||
|
Voltage range |
DC48V~57V |
||||
|
Consumption |
＜5W , PoE output < 240W |
||||
|
Ethernet |
Ethernet Port |
1～8 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
|
Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
|
Cable |
Cat6/7 network cable |
||||
|
PoE Protocol |
IEEE802.3af/at protocol |
||||
|
PoE Power Supply |
End-span |
||||
|
Working Environment |
Working Temperature |
-40℃~75℃ |
|||
|
Storage Temperature |
-40℃~85℃ |
||||
|
Mechanical |
Dimension |
139mm×109mm×50mm |
|||
|
Out Shell |
Aluminum |
||||
|
Color |
Black |
||||
|
Weight |
0.6kg |
||||
|
Power/Distance |
Distance |
100m |
150m |
200m |
250m |
|
Power |
26W |
24W |
23W |
20W |
|
Din Rail 8-port PoE To 2-port SFP Fiber Ethernet Switch Overview
LNK-GYT208GP-SFP Series is 250m Industrial PoE Switch with 8 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 8 ports PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber.
Copper to Fiber 802.3at PoE Switch Ordering Information
|
Model |
Description |
|
LNK-GYT208GP-SFP |
8-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
