Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-HDE-60
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Name: |
60M 1080P@60Hz HDMI Extender Over Cat6 With POC Function |
Model: |
LNK-HDE-60 |
The Warranty: |
1 Year Free Warranty |
Dimension: |
79*43*23mm |
Audio Format: |
LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio |
Connector: |
LC |
Fiber Cable: |
SC/APC |
HDCP: |
HDCP 2.2 |
HDR: |
Support HDR 10 |
Input Interface: |
HDMI Type A |
Operating Humidity: |
10%~85% RH (no Condensation) |
Operating Temperature: |
0°C~40°C |
Output Interface: |
HDMI Type A |
Power Supply: |
DC 5V/1A |
Product Name: |
HDMI Fiber Extender |
Storage Humidity: |
5%~90% RH (no Condensation) |
Storage Temperature: |
-20°C~60°C |
Transmission Distance: |
Up To 2km |
Video Resolution: |
Up To 4K@60Hz |
Name: |
60M 1080P@60Hz HDMI Extender Over Cat6 With POC Function |
Model: |
LNK-HDE-60 |
The Warranty: |
1 Year Free Warranty |
Dimension: |
79*43*23mm |
Audio Format: |
LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio |
Connector: |
LC |
Fiber Cable: |
SC/APC |
HDCP: |
HDCP 2.2 |
HDR: |
Support HDR 10 |
Input Interface: |
HDMI Type A |
Operating Humidity: |
10%~85% RH (no Condensation) |
Operating Temperature: |
0°C~40°C |
Output Interface: |
HDMI Type A |
Power Supply: |
DC 5V/1A |
Product Name: |
HDMI Fiber Extender |
Storage Humidity: |
5%~90% RH (no Condensation) |
Storage Temperature: |
-20°C~60°C |
Transmission Distance: |
Up To 2km |
Video Resolution: |
Up To 4K@60Hz |
60M 1080P 60Hz HDMI Extender Over Cat6 165MHz With POC Function
60M 1080P@60Hz HDMI Extender over cat6 with POC Function
· Uncompressed and zero latency
· Auto adjustment to match the cable length
· The highest resolutions supported is up to 1080P@60Hz
· Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
· Support EDID pass-through for smart match between the source device and display device
· Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable
Technical Indexes
| Parameter | Description | |
|
Video
|
Standards | HDMI 1.3; HDCP 1.3 |
| Maximum pixel clock | 165MHz Digital | |
| Maximum data rate | 6.75Gbps | |
| Resolution | 3D:1080p@60Hz; 1080i@50/60Hz, 720p@50/60Hz, 576i@50Hz, 576p@50Hz, 480i@60Hz, 480p@60Hz, | |
| HDMI | Impedance | 100Ω |
| Connector | HDMI-A | |
| HDMI cable | Less than 5m at 1080p@60hz | |
| RJ45 | Interface | RJ45 |
| Transmission distance | CAT6/7--- 60m at 1080p@60hz | |
| Network cable | Low resistance and consumption oxygen-free copper core (CAT6,CAT6A,CAT7)-UTP | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 79*43*23mm | |
| The warranty | 1 year free warranty | |
Overview

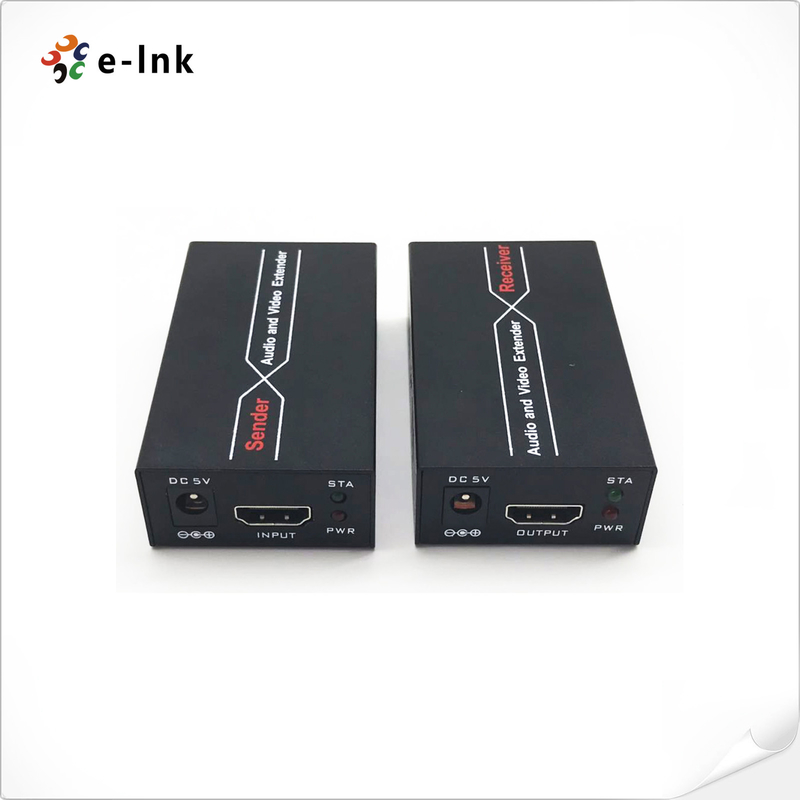

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the sender/receiver (Connect power supply to the transmitter /receiver, each unit will power up, as the unit through network cable). This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc. The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
Ordering Information
| Part No | Description of product |
| LNK-HDE-60 | 60M 1080P@60Hz HDMI Extender over cat6 with POC Function |
