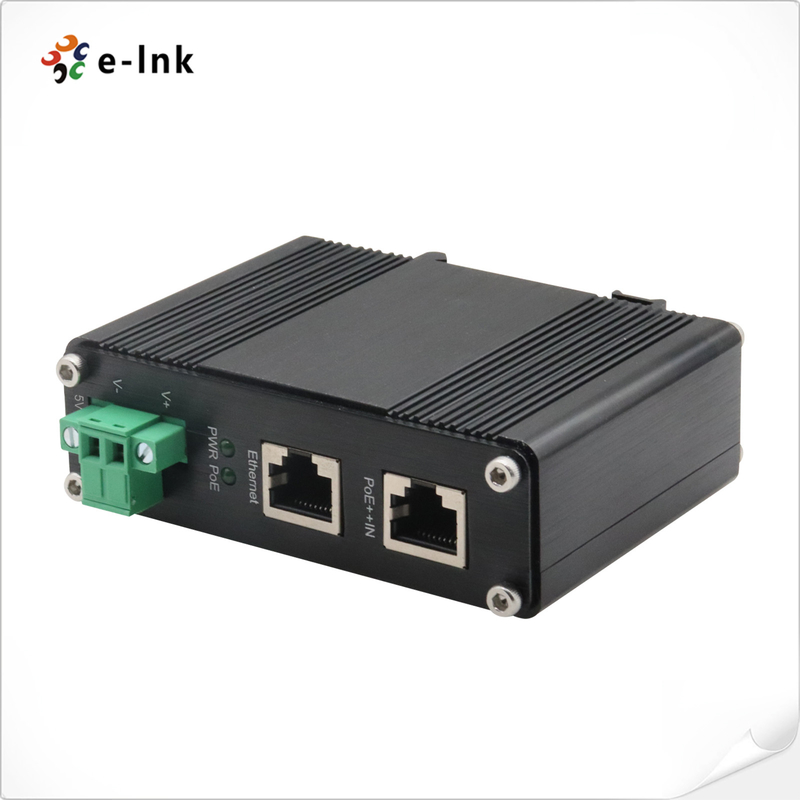

20W 5VDC IP40 Aluminum Case PoE Power Splitter Up To 100 Meters

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-INS901-5V

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: PoE Power Splitter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: T/T, Western Union, MoneyGram, Paypal

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

IP40 PoE Power Splitter

,

20W 5VDC PoE Power Splitter

,

IP40 PoE Splitter 5V

Keywords:
PoE Power Splitter
Output Voltage:
20W 5VDC
PoE Standard:
802.3af/at/bt Power Over Ethernet
Distance:
Up To 100 Meters
Casing:
IP40 Aluminum Case
Power Consumption:
25W Max.
Keywords:
PoE Power Splitter
Output Voltage:
20W 5VDC
PoE Standard:
802.3af/at/bt Power Over Ethernet
Distance:
Up To 100 Meters
Casing:
IP40 Aluminum Case
Power Consumption:
25W Max.
Description
20W 5VDC IP40 Aluminum Case PoE Power Splitter Up To 100 Meters

20W 5VDC IP40 Aluminum Case PoE Power Splitter Up To 100 Meters



Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 5VDC



PoE Power Splitter Advantages

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C



Technical Indexe

Electrical and Mechanical
Power Output: 20W 5VDC (Terminal Block)
Power Consumption: 25W Max.
LED Indicators:
PWR: 5VDC Power OUT
POE: PoE Power IN
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview

LNK-INS901-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

20W 5VDC IP40 Aluminum Case PoE Power Splitter Up To 100 Meters 0

20W 5VDC IP40 Aluminum Case PoE Power Splitter Up To 100 Meters 1

Ordering Information

Model Description
LNK-INS901-5V Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
