64Ch Wdm Mux And Demux SMF Connector Passive Cwdm Mux

Name: 64Ch Wdm Mux And Demux SMF Connector Passive Cwdm Mux
Brand: E-link China Technology Co.,LTD
SKU: LNK-PCM64
Price: 137.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-PCM64

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $5-269

Packaging Details: Accessories Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                      64Ch Wdm Mux And Demux, SMF Connecto Wdm Mux And Demux, 64Ch Passive Cwdm Mux


Telephone Ports:

64 Telephone Port RJ11 Port

Connector:

SMF

Telephone Ports:	64 Telephone Port RJ11 Port
Connector:	SMF

Description

64Ch Wdm Mux And Demux SMF Connector Passive Cwdm Mux

64Ch Wdm Mux And Demux SMF Connector Passive Cwdm Mux

64Ch POTS(FXO/FXS)Telephone over Fiber Mux

Accessories Advantages:

Support FXO / FXS ordinary telephone

64 channel support voice access, Support Caller ID and Fax

Power link to fiber optic , data status indication LED can monitor system health

Technical Indexes

Telephone Ports	64 telephone port RJ11 port
FXS	Ringing voltage: 75V, ringing frequency: 25HZ
FXO	Second line input impedance:600Ω (hook), return loss: 40db, ring detection voltage:35V
Connection	Point to point,
Code	PCM
Fiber	FC
Transmission	2000M
Specification	Temperature: -35°～ 75°C
Consumption	3w

Overview

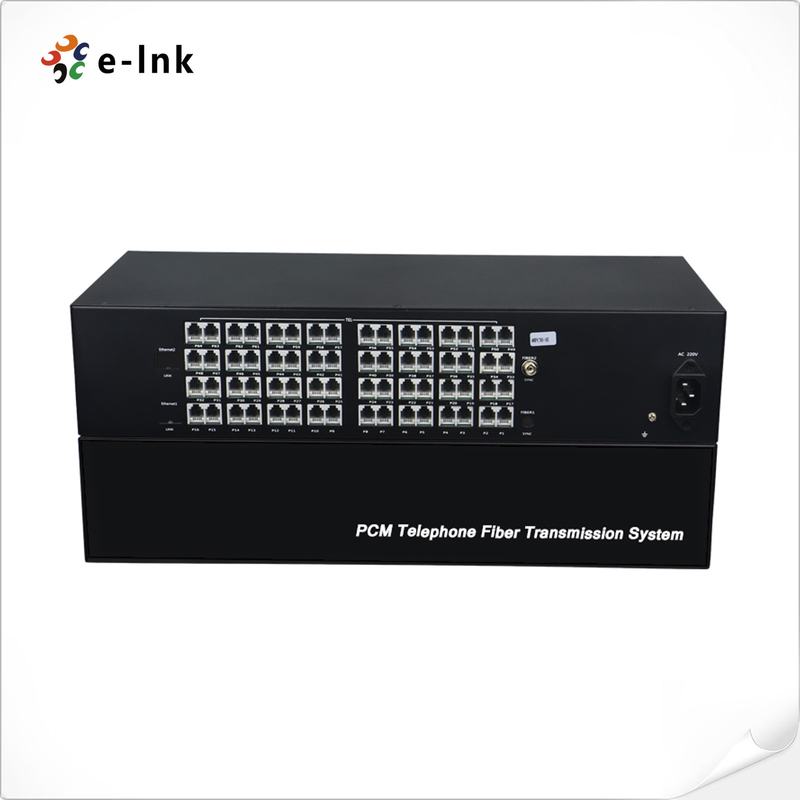

E-link 64 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender.

64Ch Wdm Mux And Demux SMF Connector Passive Cwdm Mux 0

Ordering Information

Model	Description
LNK-PCM64	Analog Telephone to F/O Converter: 64-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
