Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-PR14-2A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD729/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Number Of Slots: |
14 |
Structure: |
2U Rack |
Dimension: |
90mm (H) X 485mm (W) X 230mm (D) |
Ripple: |
≤20 Mv |
Number Of Slots: |
14 |
Structure: |
2U Rack |
Dimension: |
90mm (H) X 485mm (W) X 230mm (D) |
Ripple: |
≤20 Mv |

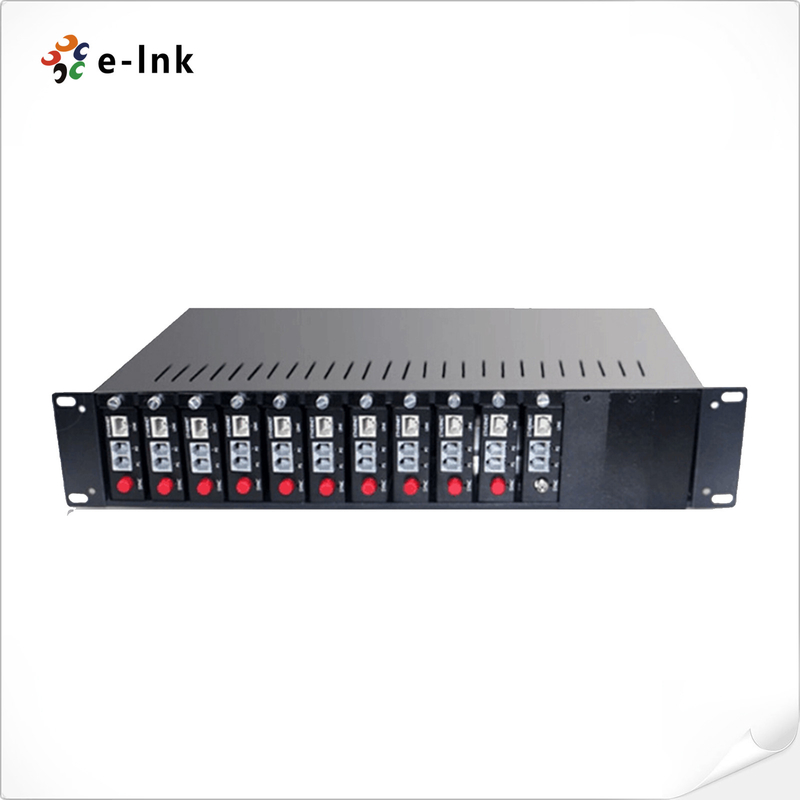

14 Slots 2U Telephone Fiber Mux Rack Active Standby Power Supply
14-slots 2U Telephone Fiber Mux Rack
Accessories Advantages:
► The configuration of active/standby power supply ensures uninterruptible operation of the system.
► Provide two power supplies (AC 220V, or DC -48V), enabling the system can work under many operating environments;
► Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
► Supports hot swapping;
► Application module types: LNK-PCM01 (1Ch Telephone Fiber Mux)series and LNK-PCM02 (2Ch Telephone Fiber Mux) series
Technical Indexes
| Parameter | Specifications |
| Number of slots | 14 |
| Structure | 2U rack |
| Dimension | 90mm (H) x 485mm (W) x 230mm (D) |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC 36~72V | |
| Power output | DC12V 10A |
| Ripple | ≤20 mv |
| Power configuration | dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 120W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Overview
LNK-PR14 is a kind of cost-effective telephone fiber mux rack (2U) widely used in the equipment room. Different types of module type telephone fiber mux developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.
Ordering Information
| Model | Description |
| LNK-PR14-2A | 14-slot, dual power supply-AC220V-19''2U- black-for 1Ch or 2Ch telephone fiber mux standalone |
