Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-M3011SFP-PD
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD29/PCS
Packaging Details: Micro Mini SFP Media Converter Standard Carton Packaging
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Connector: |
1 X 10/100/1000BASE-T Ethernet TP RJ45 Port |
Optical Port: |
1 X 100/1000BASE-X SFP (LC) (auto Detection) |
Standard: |
IEEE 802.3af/at/bt |
Input Power: |
PoE 48V-54V DC In-line Power Or Optional DC 5~15V(Type-C) |
Casing: |
Aluminum Case |
Weight: |
46g |
Connector: |
1 X 10/100/1000BASE-T Ethernet TP RJ45 Port |
Optical Port: |
1 X 100/1000BASE-X SFP (LC) (auto Detection) |
Standard: |
IEEE 802.3af/at/bt |
Input Power: |
PoE 48V-54V DC In-line Power Or Optional DC 5~15V(Type-C) |
Casing: |
Aluminum Case |
Weight: |
46g |

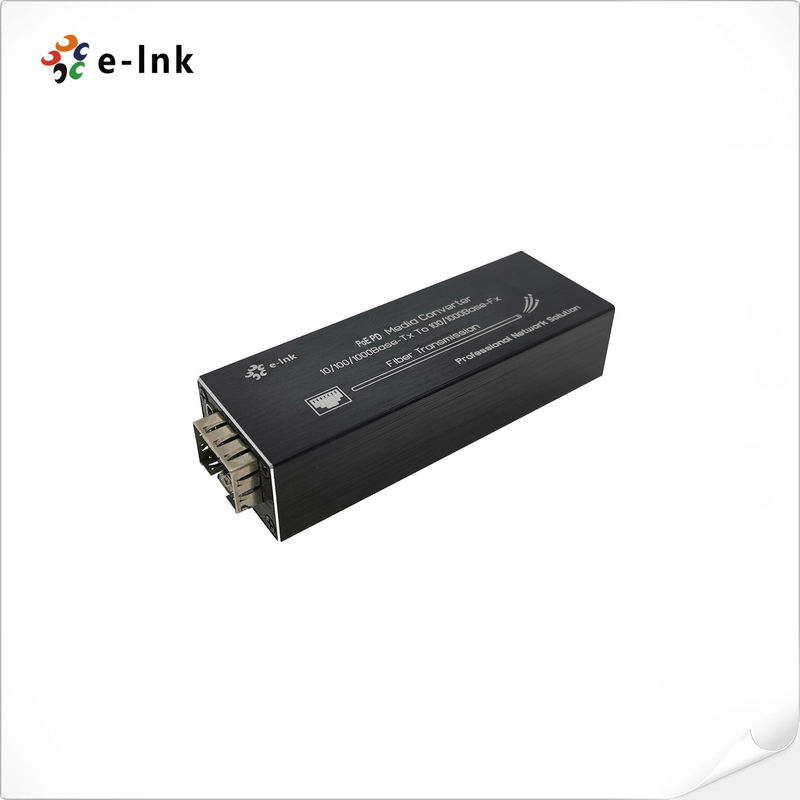

Micro Mini 802.3at PoE SFP Fiber Optic To Ethernet Converter
Micro Mini SFP Media Converter Advantages:
IEEE 802.3af/at/bt 48V~54V DC in-line power input
Easy to install and use
10/100 /1000Base-T to 100/1000Base-X SFP
SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
USB-powered for portability, or use 5~15VDC wide range power input
Ultra-compact and weigh less than 2 ounces
Support 9k jumbo frame
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
Micro Mini SFP Media Converter Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE 802.3z 1000BASE-SX/LX | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Max Packet Length: | 9K Bytes |
| Interface | |
| Connector: | 1 x 10/100/1000BASE-T Ethernet TP RJ45 port |
| Optical Port: | 1 x 100/1000BASE-X SFP (LC) (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3) | |
| IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4) | |
| Port: | RJ45 |
| Electrical and Mechanical | |
| Input Power: | IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5~15V(Type-C) external power adapter(Not included in standard package) |
| Power Consumption: |
DC 48V PoE In: 3.1 watts/10.5BTU DC 54V PoE In: 3.2watts/10.9BTU |
Micro Mini SFP Media Converter Overview
E-link LNK-M3011SFP-PD is a Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
equipped with a convenient and cost-effective 802.3af/at/bt PoE power injection solution. It is quite different from the regular
media converter that needs to obtain power from DC power adapter; it can power on via various IEEE 802.3at/bt PoE PSE equipment.
The LNK-M3011SFP-PD features two kinds of power input system designs (IEEE 802.3af/at/bt 48V~54V DC in-line power and optional
5~15V DC input) incorporated into customer’s network to enhance system reliability and uptime. However, that has to depend on
the kind of Ethernet environment that is needed, be it the LNK-M3011SFP-PD operated as a PoE PD media converter or standard
Gigabit media converter with optional 5~15V DC input. The Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop
applications where you need Gigabit fiber connectivity but local power isn't available.
Micro Mini SFP Media Converter Ordering Information
| Model | Description |
| LNK-M3011SFP-PD | Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately | |
| Mounting Options | ► Desktop |
| Power Options | ► IEEE 802.3af/at/bt 48V~54V DC in-line power |
| ► Optional 5~15V DC input |
