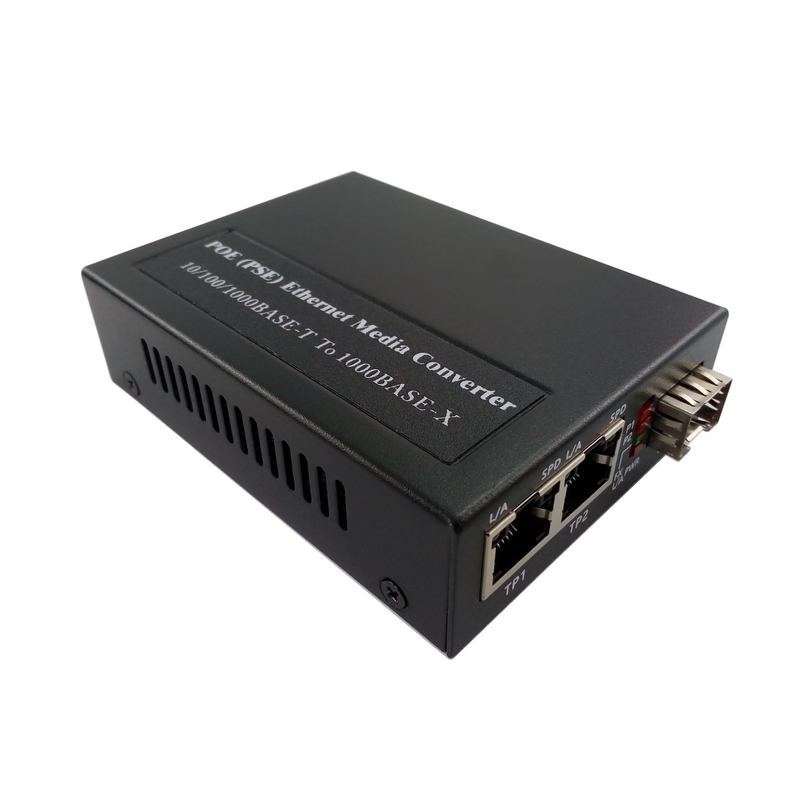

1310nm 1550nm 802.3at PoE Media Converter 2xRJ45 1xSFP Connector

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-1200P-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiation

Packaging Details: Micro Mini SFP Media Converter Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

802.3at PoE Media Converter

,

1310nm PoE Media Converter

,

1550nm Fiber Optic Media Converter

Power Consumption:
<3W
Temperature:
0~50ºC (Operating); -20~70ºC (Storage)
Humidity:
5% ~ 90% Non-condensing
Dimension:
94x71x26mm (WxDxH)
Power Consumption:
<3W
Temperature:
0~50ºC (Operating); -20~70ºC (Storage)
Humidity:
5% ~ 90% Non-condensing
Dimension:
94x71x26mm (WxDxH)
Description
1310nm 1550nm 802.3at PoE Media Converter 2xRJ45 1xSFP Connector

1310nm 1550nm 802.3at PoE Media Converter 2xRJ45 1xSFP Connector



1-Port 1000BASE-SFP to 2-Port 10/100/1000BASE-T 802.3at PoE Media Converter





 Advantages:



► 2-Port 10/100Base-TX to 1-Port 100Base-SFP Fiber

► Fiber to copper Ethernet converter and PoE injector all in one device

► Extend network distances up to 120km

► Supply PSE power to PoE and PoE+ compliant devices

► IEEE 802.3af and IEEE802.3at compliant

► Provide 15.4 to 30 Watts of PoE power

► IEEE802.3af with max. Power 15.4 W, IEEE802.3at with max. Power 30W.



Technical Indexes

Parameter Specifications
Standard IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE 802.3 100BASE-FX
IEEE802.3x Flow Control;
IEEE802.3af/at Power over Ethernet
Fiber Type SFP Port
Power over Ethernet IEEE 802.3af/at Power over Ethernet

IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA

IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA

Power Pin Assignment: 4/5(+), 7/8(-)
Distance Multi-mode: 2Km
Single mode: 20/40/60/80/120 Km
Single fiber single mode: 20/40/60/80/100 km
Category-5 twisted pairs: 100m
Date Rate 10/100Mpbs
Connector 2xRJ45, 1xSFP
Wavelength 1310nm, 1550nm
Diagnostic LED Power, Link/Activity
Power Input DC48V~57V
Power Consumption <3W
Temperature 0~50ºC (Operating); -20~70ºC (Storage)
Humidity 5% ~ 90% non-condensing
Dimension 94x71x26mm (WxDxH)




Overview

E-link's feature rich PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet (PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.



E-link LNK-1200P-SFP series media converters are 2-Port 10/100BaseT/TX to 1-Port 100Base-SFP Power over Ethernet (PoE) devices that serve as Power Sourcing Equipment (PSE),which allows the converter to provide power to IEEE802.3af /at PoE standard-compliant Powered Devices (PDs) using the twisted pair connection. Power transmitted along with data in one single cable (RJ45) allows you to expand your network where there are no power lines or outlets, where you wish to fix devices such as Wifi -Aps, IP Cameras or IP Phones, etc.

1310nm 1550nm 802.3at PoE Media Converter 2xRJ45 1xSFP Connector 0

Ordering Information

Model Description
LNK-1200P-SFP 1-Port 100BASE-SFP to 2-Port 10/100BASE-T 802.3af PoE Media Converter
LNK-1200PT-SFP 1-Port 100BASE-SFP to 2-Port 10/100BASE-T 802.3at PoE Media Converter
