Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-DEC140P-R
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD85/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Maximum Distance: |
Cat5UTP Up To 100m |
Ethernet Connector: |
1 X RJ45 |
Coaxial Connector: |
4 BNC (female) |
Distance: |
Up To 300m |
Input Power: |
48-57VDC (2 Pin Connector) |
Weight: |
0.5kg |
Maximum Distance: |
Cat5UTP Up To 100m |
Ethernet Connector: |
1 X RJ45 |
Coaxial Connector: |
4 BNC (female) |
Distance: |
Up To 300m |
Input Power: |
48-57VDC (2 Pin Connector) |
Weight: |
0.5kg |
300m Fiber Optic Accessories 10 100Base TX Ethernet Switch With PoC

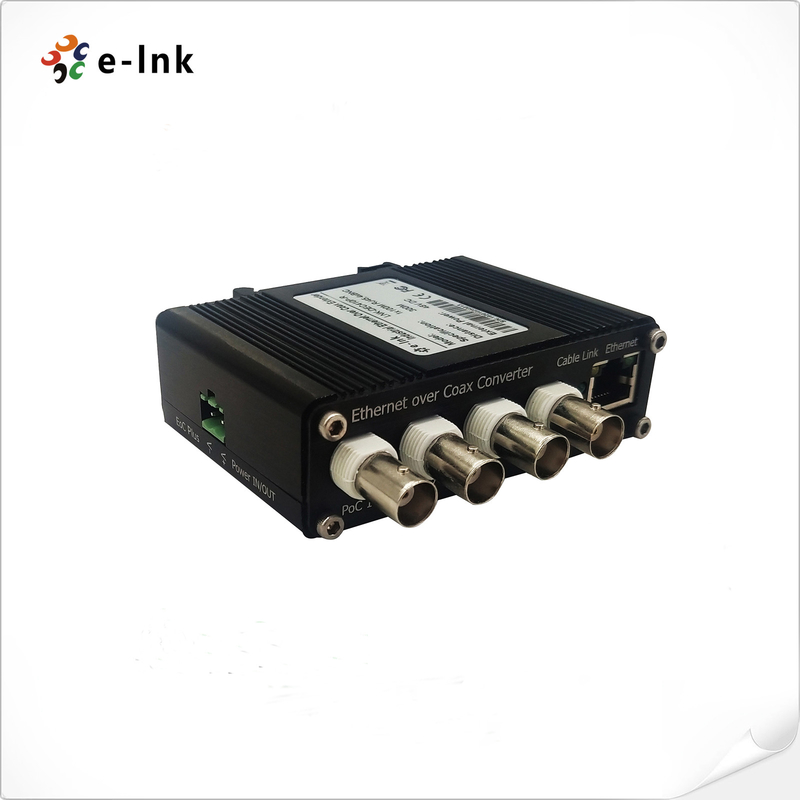

DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC
Accessories Advantages:
Ethernet Extension: Security Link over Coax
Support DIN-Rail mount installation
Connecting up to 4 x LNK-DEC110P and IP Cameras
1000Mbps Full-duplex communication
Power over Coaxial
Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
Max. Distance: 300m over Coax (RG59/U)
Auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables
External 48~57VDC power input
Support DIN-Rail mount installation
Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| Cabling | 100Base-TX: Cat5 or above |
| Maximum Distance | Cat5UTP up to 100m |
| Connector | 1 x RJ45 |
| Coaxial | |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 4 BNC (female) |
| Distance | 300m |
| Electrical and Mechanical | |
| Input Power | 48-57VDC (2 pin connector) |
| Power Consumption | 10W Max. w/o PoC |
| 250W Max. w/PoC | |
| Dimensions (W x D x H) | 95 × 67 × 30 mm |
| Weight | 0.5 Kg |
| Casing |
Aluminum case |
Overview
LNK-DEC140P Series DIN-Rail EOC Receiver works with the LNK-DEC110P-T (transmitter) to provide Ethernet Extension
of 4 channel 10/100Base-TX over Coaxial cable to 1-port 10/100Mbps Ethernet. The maximum coaxial cable distance is 800m.
The product support PoC, hence, no power point is required for the transmitter side and the connected IP camera
if the camera support Power over Ethernet (PoE). The product is good for retrofit of analogue
system by using the existing cable infrastructure.
Ordering Information
| Model | Description |
| LNK-DEC140P-R | DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC |
