Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-SHC110
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
Input Port: |
1 X BNC (SDI/HD-SDI/3G-SDI) |
Output Port: |
1 X HDMI |
SMPTE Standard: |
425M Level A & B, 424M, 292M, 259M-C |
SDI Transmission Rates: |
2.970 Gbit/s And 2.970/1.001 Gbit/s |
HDMI Input/output Connect: |
HDMI Type A 19Pin |
Link Connector: |
BNC Shielded |
Input Port: |
1 X BNC (SDI/HD-SDI/3G-SDI) |
Output Port: |
1 X HDMI |
SMPTE Standard: |
425M Level A & B, 424M, 292M, 259M-C |
SDI Transmission Rates: |
2.970 Gbit/s And 2.970/1.001 Gbit/s |
HDMI Input/output Connect: |
HDMI Type A 19Pin |
Link Connector: |
BNC Shielded |

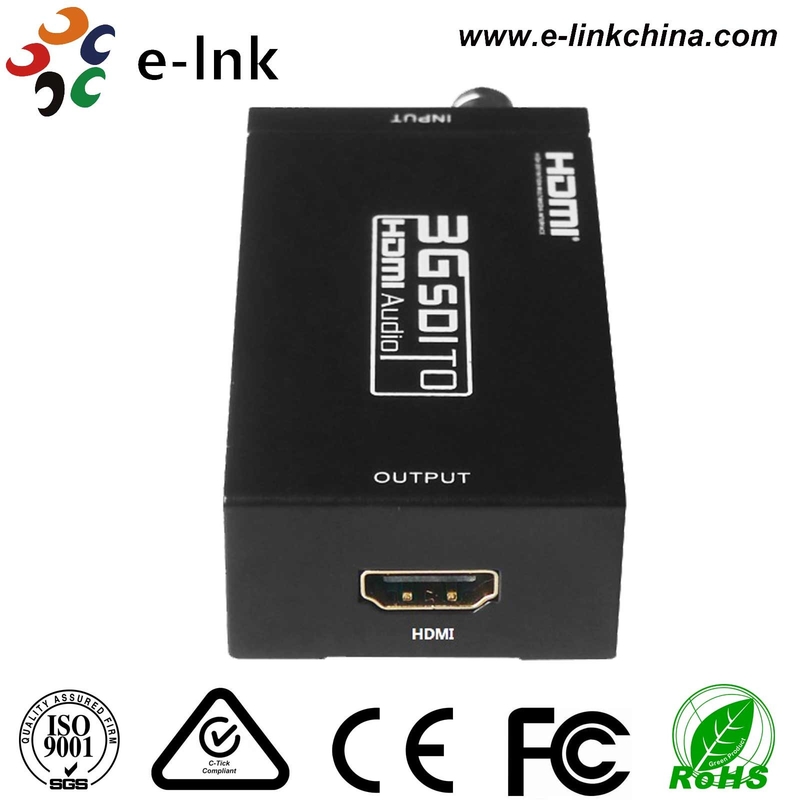

DC5V 1A 3G SDI To HDMI Converter BNC Shielded Link Connector
3G-SDI to HDMI Converter
3G-SDI to HDMI Converter Advantages
l Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
l Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
l Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
l Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
l Connect with other units to extend your signal over long distances
Specifications
|
Parameter |
Specifications |
| Input Port |
1 x BNC (SDI/HD-SDI/3G-SDI) |
| Output Port | 1 x HDMI |
| SMPTE Standard | 425M Level A & B, 424M, 292M, 259M-C |
| SDI Transmission Rates | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution |
480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 |
| HDMI input/output connect | HDMI type A 19Pin |
| Link Connector | BNC Shielded |
| Power Adapter | DC5V/1A |
| Operating temperature range | -40℃ to +70℃ |
| Operating humidity range | 5 to 90% RH (no condensation) |
| Shippingweight | 0.15 KGS |
| Dimensions( L x W x H) | 98.5 x 85 x 31mm |
Overview
The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
Order Information
| Item | Description | Unit | Unit Price Ex-works(in US$) |
||
| Sample 1~10 |
<100 | >100 | |||
| LNK-SHC110 | 3G/HD/SD-SDI to HDMI Converter, Inputs: 1 x SDI (3G/HD/SD), Outputs: 1 x HDMI | pcs | US$39 | US$32 | US$29 |
