RS232 control HDMI Fiber Extender Converter Board For Sony Camera Output

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-Convert-Sony

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: Negotiation

Packaging Details: HDMI Video Extender Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pairs/month

Get Best Price
Contact Now
Specifications
Highlight:

RS232 HDMI Fiber Extender

,

12VDC HDMI Fiber Extender

,

RS232 4k Hdmi Optical Extender

Input Analog:
30pin LVDS Cable
Input Digital:
30pin LVDS Cable
Camera Control Interface:
RS232 Control
Power Requirements:
9 To 12V DC
Input Analog:
30pin LVDS Cable
Input Digital:
30pin LVDS Cable
Camera Control Interface:
RS232 Control
Power Requirements:
9 To 12V DC
Description
RS232 control HDMI Fiber Extender Converter Board For Sony Camera Output

RS232 Control HDMI Fiber Extender Converter Board For Sony Camera Output



Converter Board for Sony Camera Output 3G/HD-SDI and HDMI


Advantages



► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s

► Compliance with HDMI1.4B 3D and HDCP1.2 standard

► Support HDMI video resolution up to 1920*1200@ 60Hz

► Board and camera management via RS232/TTL

► Board and camera management via RS485/TTL

► Power supply: 9 to 12 VDC, 6 W (including camera)

► Dimensions (W x L x H):70mm x 55mm x 18.5mm

► Camera output 30pin LVDS Cable



Technical Indexes

Input Analog 30pin LVDS Cable
Input Digital 30pin LVDS Cable
Video output HD

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

HDMI Video

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)

1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Camera control interface RS-232 control
Power Requirements 9 to 12 V DC
Mass 30g
Cable 30pin LVDS Cable
Dimensions (W x H x D) 70mm x 55mm x 18.5 mm
Working Temperature -20℃~+70℃
Storage Temperature -40℃~+80℃
Working Humidity 0~95%
MTBF ≥100000 hours

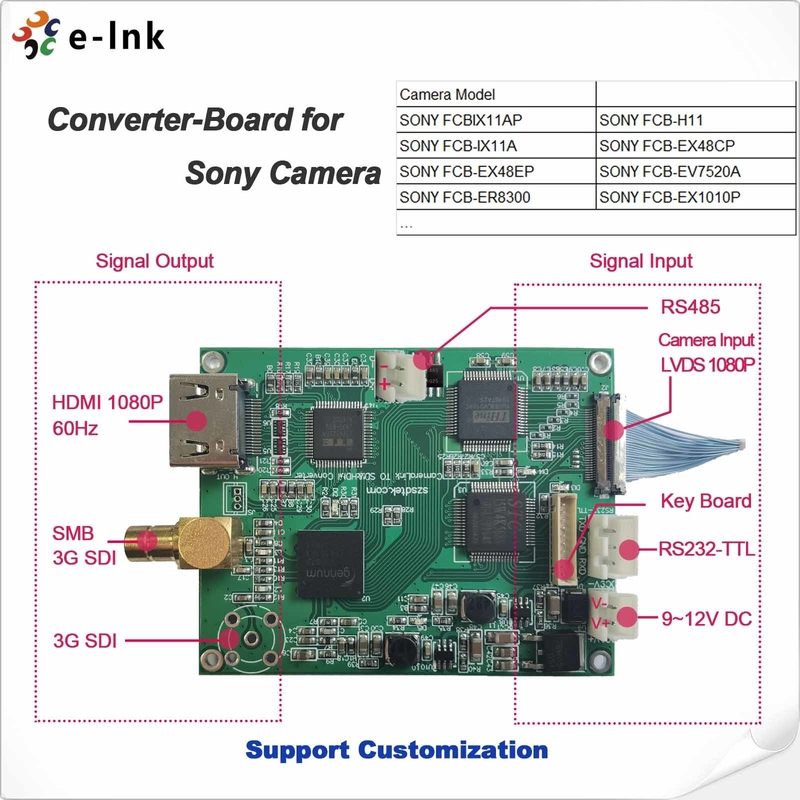

RS232 control HDMI Fiber Extender Converter Board For Sony Camera Output 0

Overview

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500 / FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Ordering Information



Model Description
LNK-Convert-Sony Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input
Output: 2X3G/HD-SDI Output 1XHDMI 1080P 60Hz Output
