Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-WHD31
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Storage Temperature: |
-20 - + 80℃ |
Operation Humidity: |
15% - 85% |
Dimension: |
85*55*10mm |
Weight: |
80g(+-3g) |
Storage Temperature: |
-20 - + 80℃ |
Operation Humidity: |
15% - 85% |
Dimension: |
85*55*10mm |
Weight: |
80g(+-3g) |

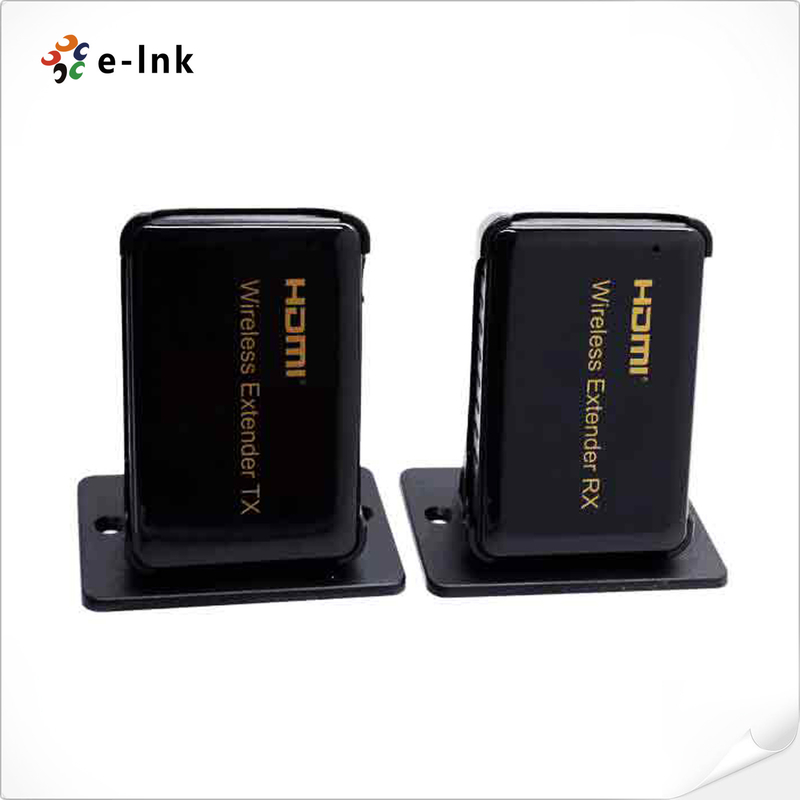

1080p HDCP1.4 Wireless HDMI Extender Uncompressed Up To 30M
Wireless HDMI extender 30M
Advantages
· Support HDMI 1.4a version
· Support 3D video format
· Support HDCP1.4
· Support the highest resolution up to 1920x1080/60Hz
· Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
· Support uncompressed transmission
· Working in the 60 GHz frequency band, it is not subject to interference by WiFi signals, microwave radiation, or cordless phones
· The longest distance can be 30m when the resolution is 1080p
· 5V/1A power adaptor
Technical Indexes
| Parameter | Specifications |
| HDMI version | HDMI 1.4a |
| HDMI resolution | up to 1920x1080/60Hz |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 148.5MHz |
| Max baud rate | 1.485Gbps |
| Input cable distance | (1080p resolution) ≤8m AWG26 HDMI standard cable |
| Output cable distance | (1080p resolution) ≤8m AWG26 HDMI standard cable |
| Max working current | 650m A |
| Power adapter format | input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A |
| System latency | ≤1ms |
| Range | 30M LOS(MAX) |
| Power consumption | 3.3W(MAX) |
| Operation Temperature | 0-60℃ |
| Storage Temperature | -20 - + 80℃ |
| Operation Humidity | 15% - 85% |
| Dimension | 85*55*10mm |
| Weight | 80g(+-3g) |
Overview
This LNK-WHD31 Series HDMI Wireless extender uses Wireless HD technology which enables high-speed, high performance wireless communication among consumer electronics,computer and mobile devices. Working in the uncrowded 60 GHz frequency band, it is not subject to interference by WiFi signals, microwave radiation, or cordless phone. It combines high bandwidth capacity to robust error-correction,to deliver uncompressed HD video, multi-channel surround sound. It supports the highest resolution up to 1080p@60Hz,and the transmitting distance of wireless can be up to 30m.
